Powertrain Control Module - Installation

PCM - INSTALLATION





1. Install Powertrain Control Module (PCM) onto the air cleaner housing. Hand tighten screws.

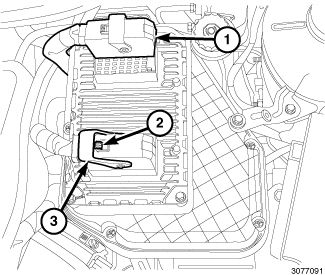

2. Connect both PCM harness connectors (1).
3. Lock the levers (3) into the locking tab (2).
4. Connect negative battery cable.
5. Reprogram the PCM Testing and Inspection.
6. Install the air intake duct.
