Transaxle Differential - Assembly

ASSEMBLY





1. Install the ring gear (2) onto the carrier (3).

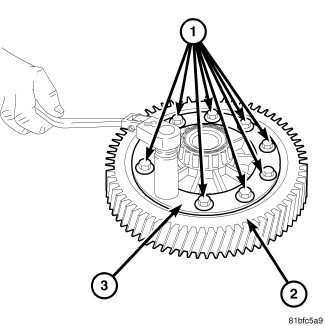

2. Install new ring gear bolts (1) and tighten to 83 Nm (61 ft. lbs.).

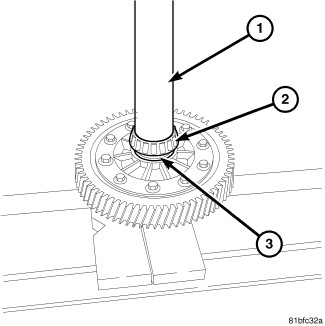

3. Using Installer 6052 (1) and a press install the new ring gear side tappered roller bearing (2).

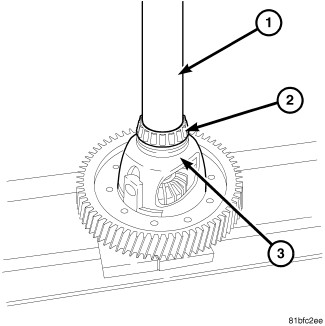

4. Using Installer 6052 (1) and a press install the new pinion side tappered roller bearing (2).
