Right Seat Airbag (Right SAB Jumper) 2 Way
Right Seat Airbag (Right SAB Jumper) 2 Way

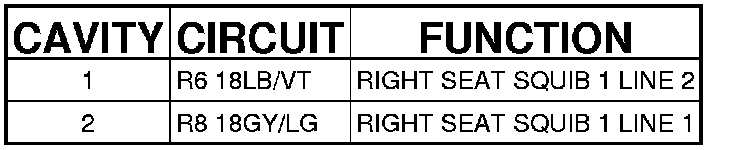

Connector - (RIGHT SAB JUMPER) 2 WAY

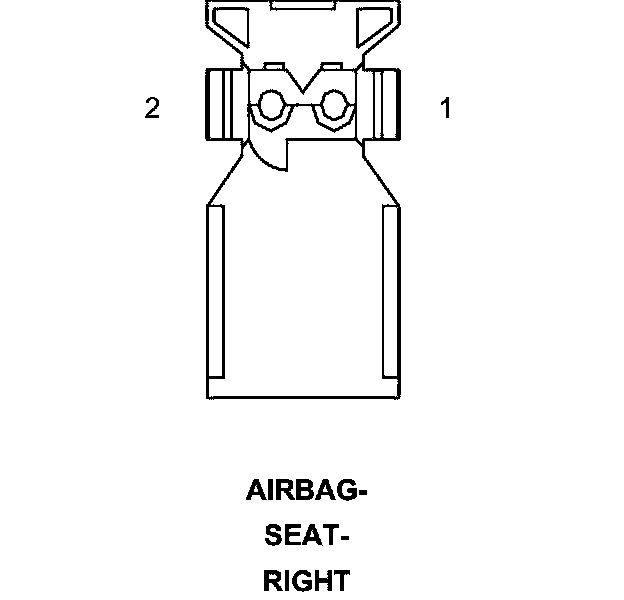

AIRBAG-SEAT-RIGHT - (RIGHT SAB JUMPER) 2 WAY
