Turbocharger: Testing and Inspection

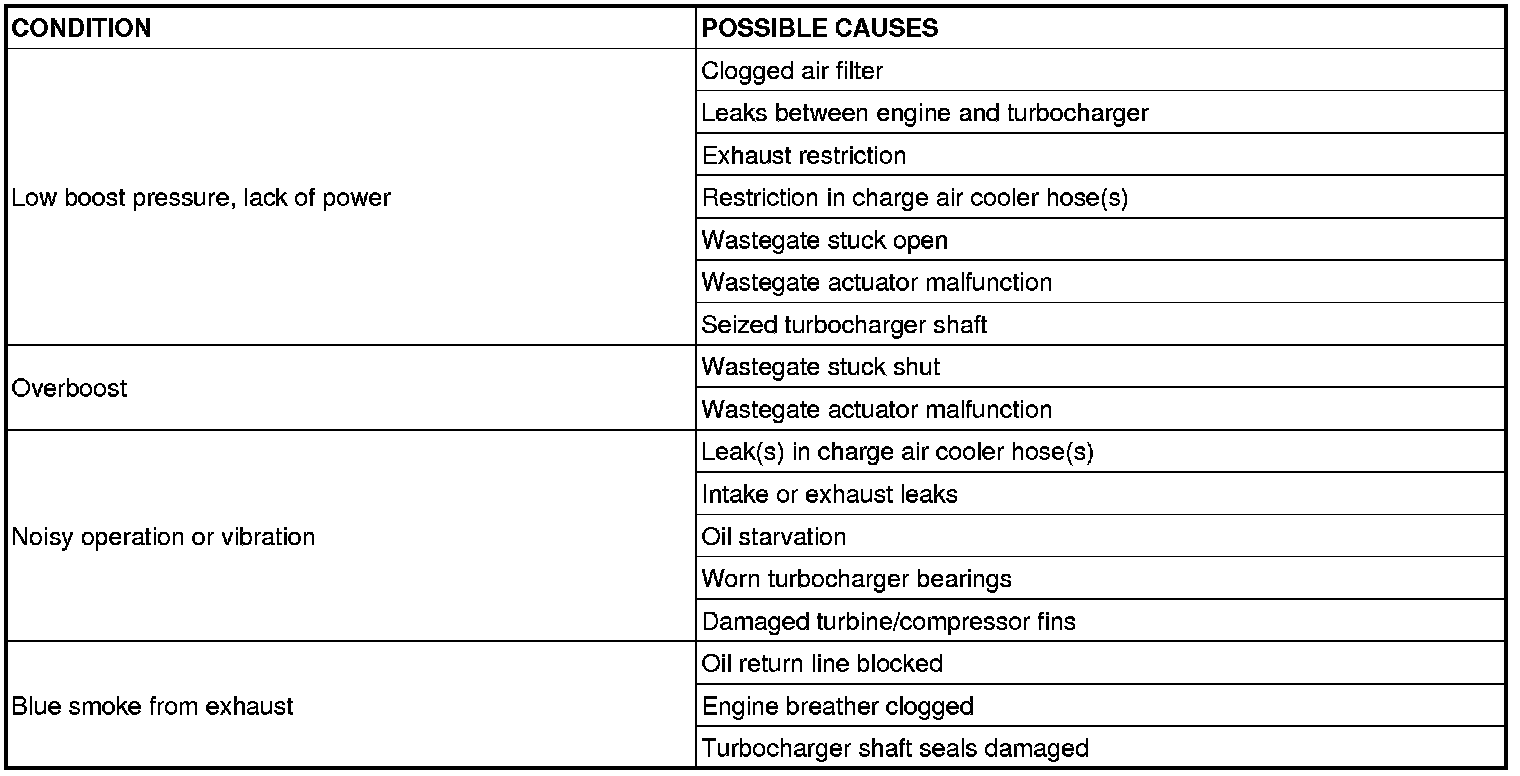

TURBOCHARGER
Check for Diagnostic Trouble Codes (DTCs) stored in PCM memory. If any DTCs are present, refer to the appropriate Powertrain Diagnostic Information.
