Charge Air Cooler Hoses

INSTALLATION - CHARGE AIR COOLER HOSES

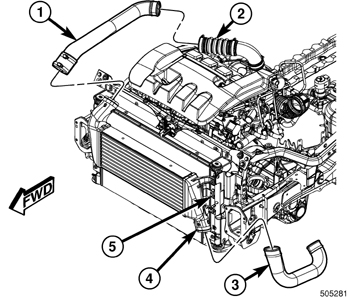

NOTE: ILLUSTRATION SHOWN WITH FASCIA REMOVED FOR CLARITY.

1. Install the lower charge air outlet tube (3). Tighten the clamps to 1.7 Nm (15 in. lbs.).
2. Install the upper charge air inlet tube (1). Tighten the clamps to 1.7 Nm (15 in. lbs.).
3. Install the upper radiator closure panel Upper Closure Panel - Installation
