Catalytic Converter - Removal

SRT4










1. Disconnect negative battery cable.
2. Raise and support vehicle.

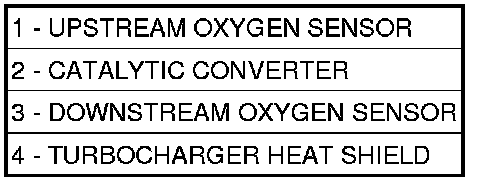

3. Remove under floor catalytic converter .
4. Disconnect upstream oxygen sensor electrical connector.
5. Remove upstream oxygen sensor (1).
6. Disconnect downstream oxygen sensor electrical connector.
7. Remove downstream oxygen sensor (3).
8. Remove turbocharger heat shield (4)










9. Remove catalytic converter support bracket bolts (1) and nuts.
10. If damaged, remove support bracket (2).










11. Remove catalytic converter to turbocharger mounting nuts.
12. Remove catalytic converter.
