Air Cleaner Body - Installation






SRT4

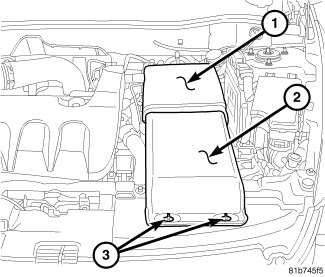

1. Install air cleaner housing (1).
2. Install air inlet tube (2).
3. Install air inlet tube retainers (3).
