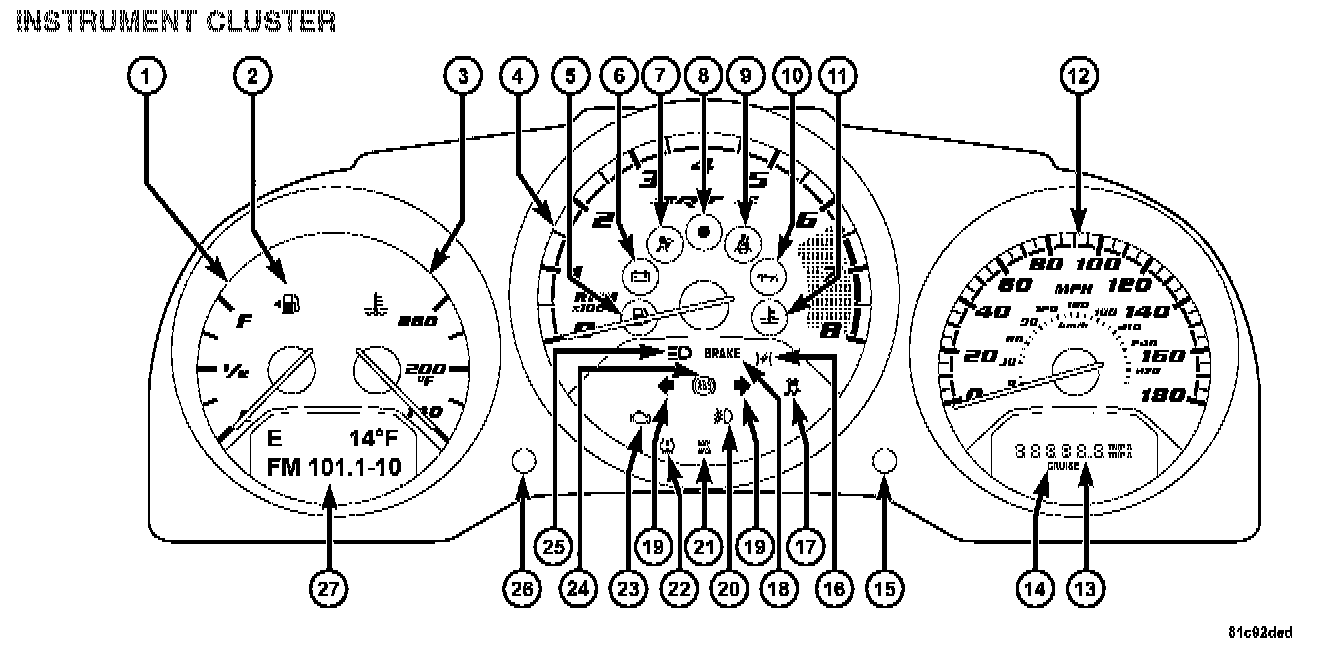

Indicator Lamp Identification

1. Fuel Gauge
2. Fuel Door indicator
3. Temperature Gauge
4. Tachometer
5. Low Fuel light
6. Charging System Light
7. Airbag Warning Light
8. Vehicle security Light - If Equipped
9. Seat Belt Reminder Light
10. Oil Pressure Warning Light
11. Engine Temperature Warning Light
12. Speedometer
13. Odometer/Trip Odometer
14. Cruise Indicator - If Equipped
15. Odometer/Trip Odometer Display Reset Button
16. Electronic Throttle Control (ETC) Light
17. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light
18. Brake Warning Light
19. Turn Signal Indicators
20. Front Fog Light Indicator - If Equipped
21. Electronic Stability Program (ESP) Indicator Light
22. Tire Pressure Monitoring Telltale Light
23. Malfunction Indicator Light (MIL)
24. Anti-Lock Brake Light (ABS)
25. High Beam Indicator
26. Electronic Vehicle Information Center (EVIC) Button - If Equipped
27. Electronic Vehicle Information Center (EVIC) Display - If Equipped
