Intake Manifold - Installation

SRT4





1. Clean all gasket surfaces.
2. Replace intake manifold gasket if damaged.
3. Install intake manifold, tighten bolts to 25 Nm (220 in. lbs.).
4. Install the fuel rail assembly to intake manifold. Tighten bolts to 23 Nm (200 in. lbs.).

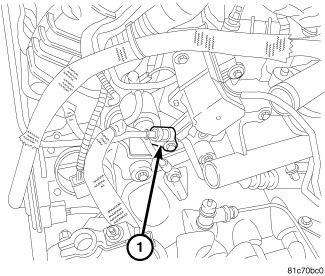

5. Install power steering pump (1).
6. Connect map sensor electrical connector (4).

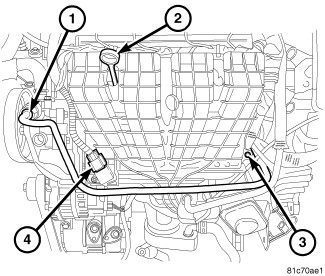

7. Install oil level indictor (2).





8. Install power steering line support (1).

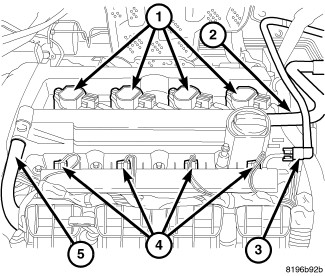

9. Connect fuel injector electrical connectors (4).

10. Inspect quick connect fittings for damage, replace if necessary Service and Repair. Connect fuel supply hose (3) to fuel rail assembly. Check connection by pulling on connector to insure it locked into position.





11. Connect negative cable to battery (2).
12. Fill the cooling system Service and Repair.

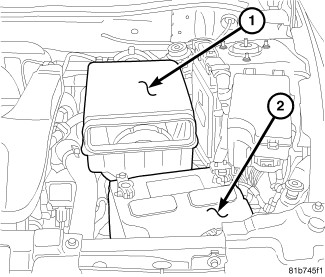

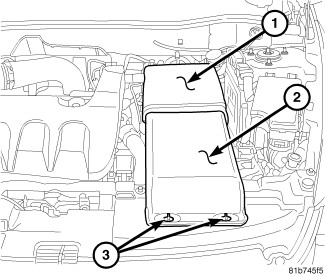

13. Install air cleaner housing (1).
14. Install air inlet (2).
15. Install engine cover.
