Home >> Dodge >> 2009 >> Caliber SRT-4 L4-2.4L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Manifold Pressure/Vacuum Sensor >> Throttle Inlet Pressure Sensor (Powertrain) 3 Way

Throttle Inlet Pressure Sensor (Powertrain) 3 Way

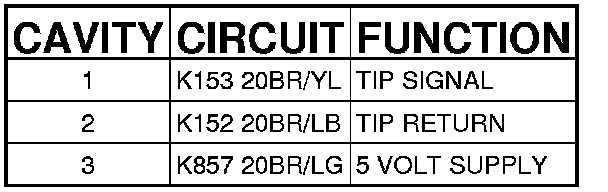

Connector (SRT4) - (POWERTRAIN) 3 WAY

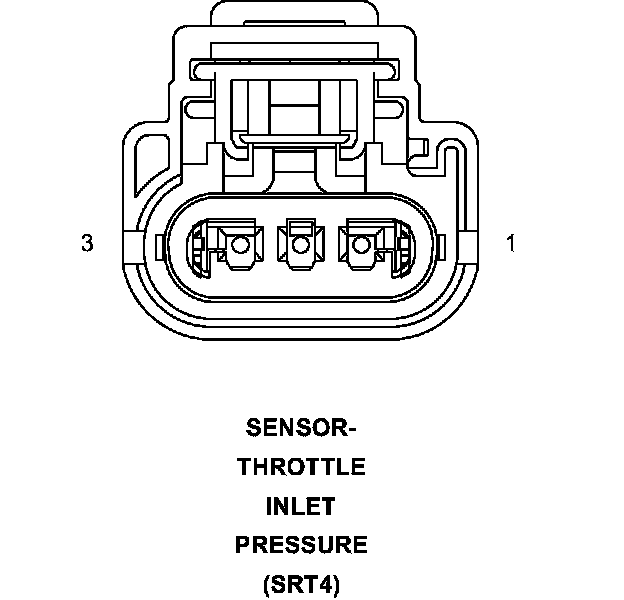

SENSOR-THROTTLE INLET PRESSURE (SRT4) - (POWERTRAIN) 3 WAY
