Home >> Dodge >> 2009 >> Caliber SRT-4 L4-2.4L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Left Headlamp (Engine Compartment) 4 Way

Left Headlamp (Engine Compartment) 4 Way

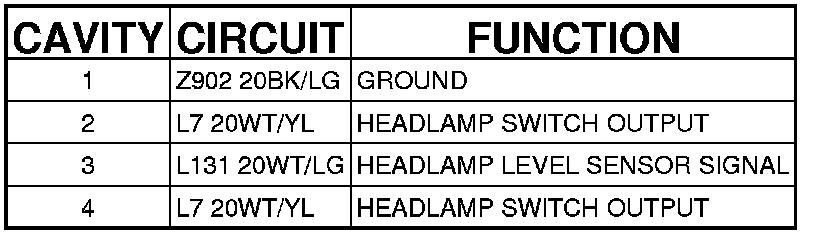

Connector (SRT4) - ENGINE COMPARTMENT 4 WAY




LAMP-HEADLAMP-LEFT (SRT4) - ENGINE COMPARTMENT 4 WAY
