EGR Valve
EGR Valve

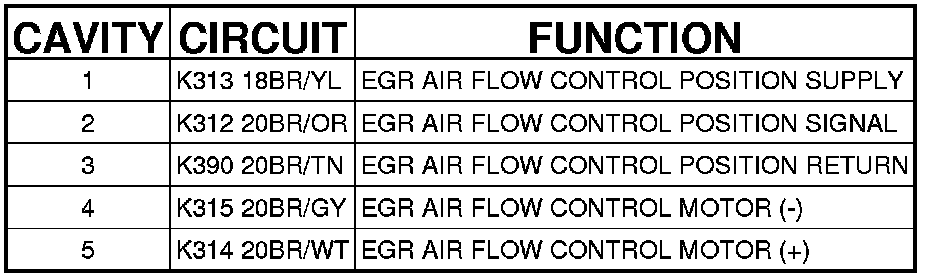

Connector (DIESEL DPF/SRT4) - (POWERTRAIN) 5 WAY

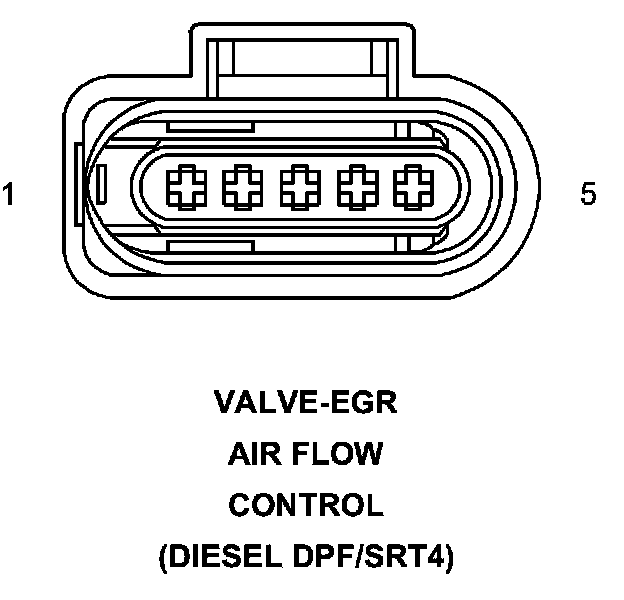

VALVE-
EGR
AIR FLOW CONTROL (DIESEL DPF/SRT4) - (POWERTRAIN) 5 WAY
