Backup Lamp Switch

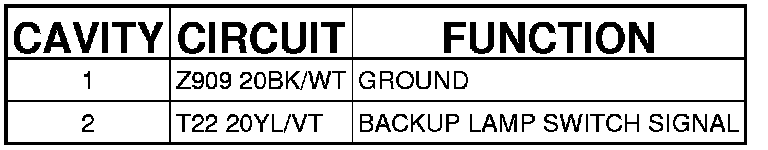

Connector (SRT4) - (POWERTRAIN) 2WAY

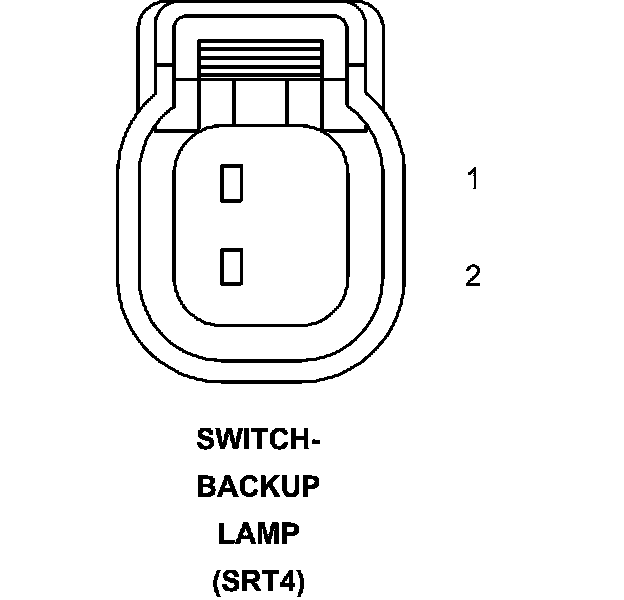

SWITCH-BACKUP LAMP (SRT4) - (POWERTRAIN) 2WAY
