Home >> Dodge >> 2009 >> Caliber SRT-4 L4-2.4L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Left Seat Cushion Heater C2 (Component Side) (Left Seat Cushion Pigtail) 2 Way

Left Seat Cushion Heater C2 (Component Side) (Left Seat Cushion Pigtail) 2 Way

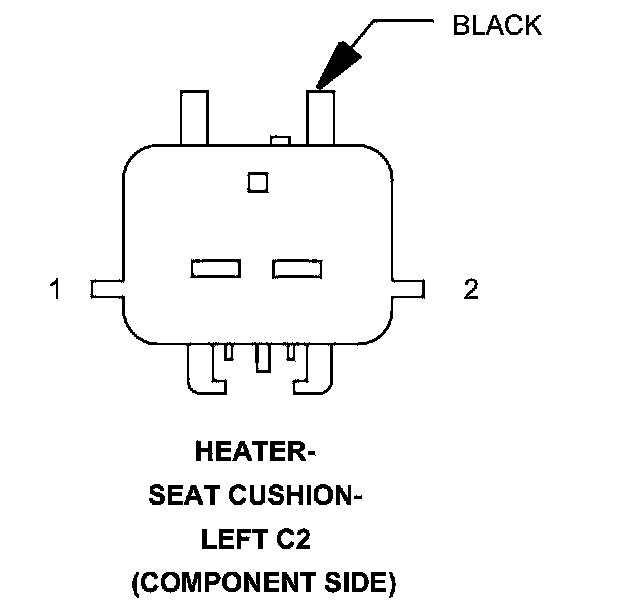

Connector C2 (COMPONENT SIDE) - (LEFT SEAT CUSHION PIGTAIL) 2 WAY

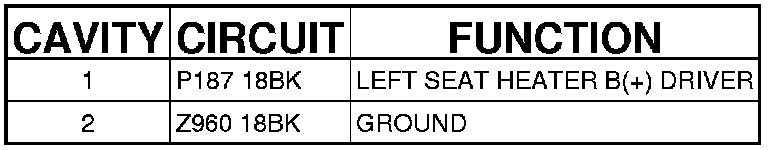

HEATER-SEAT CUSHION-LEFT (COMPONENT SIDE) - (LEFT SEAT CUSHION PIGTAIL) 2 WAY
