Rear Door Glass - Removal






REMOVAL





1. Remove speaker and grille.Speaker - Removal
2. Remove bolster.Rear Door Trim Panel Bolster - Removal
3. Remove door module.Rear Door - Removal

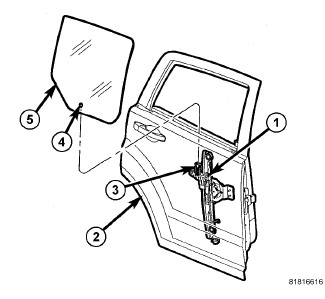

4. Raise window (5) gaining access to window tabs.
5. With a punch or equivalent, press regulator tabs holding window in regulator (3).
6. Carefully, remove window (5).
