Rear Shock Absorber, Coil-Over - Removal

REMOVAL

NOTE: Before proceeding, Vehicle Damage Warnings .

1. Remove the interior rear quarter trim panel. Quarter Trim Panel - Removal

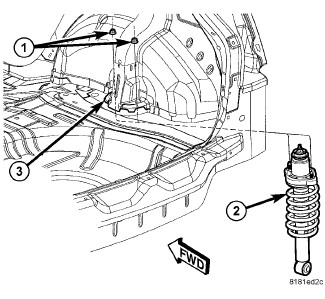

2. Remove the two nuts (1) securing the shock assembly (2) to the body bracket (3).

3. Raise and support the vehicle. Service and Repair





4. Remove the wheel mounting nuts (3), then the rear tire and wheel assembly.





5. Remove the shock lower mounting nut (3) and bolt (1).

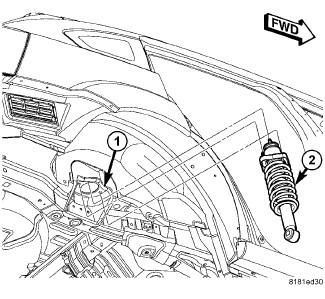

6. Lower the shock assembly (2) out of the body bracket (1) and lift out over rear suspension.
