Rear Suspension - Description

DESCRIPTION





This vehicle uses a multi-link rear suspension design.

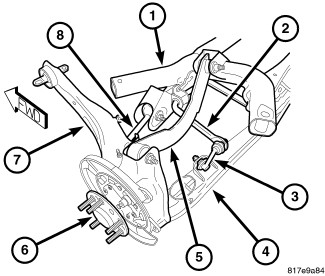

The rear suspension consists of these major components:

- (1) Rear Crossmember
- (2) Stabilizer Bar
- (3) Stabilizer Link
- (4) Lower Control Arm
- (5) Upper Control Arm
- (6) Hub And Bearing
- (7) Trailing Arm
- (8) Toe Link

Information on the rear crossmember can be found in Body and Frame. Information on all other components can be found.

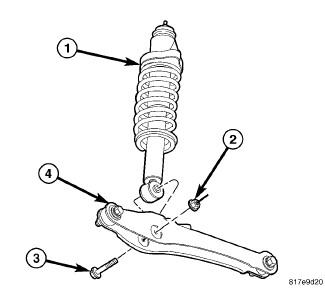

Also included in the rear suspension is a rear shock assembly (1). It fastens to the lower control arm (4) and body.
