Passenger Airbag Squib 2 (Except Base) (Instrument Panel) 2 Way

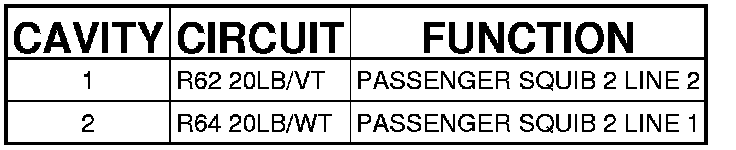

Connector (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY

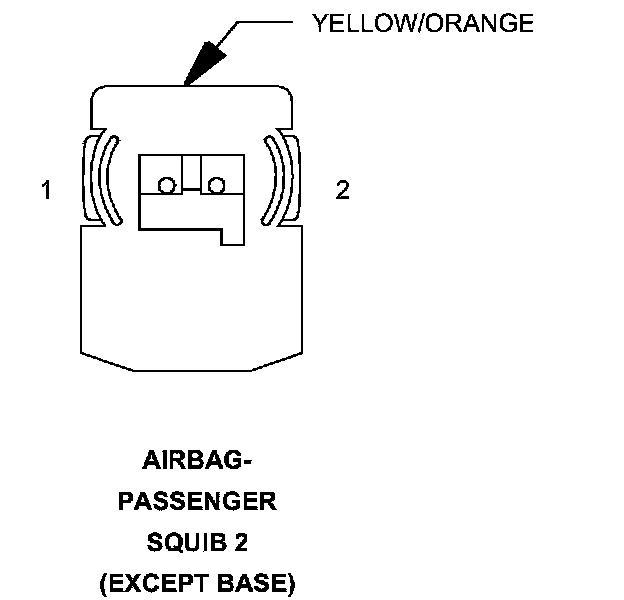

AIRBAG-PASSENGER SQUIB 2 (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY
