Driver Knee Blocker Airbag (Except Base) (Instrument Panel) 2 Way

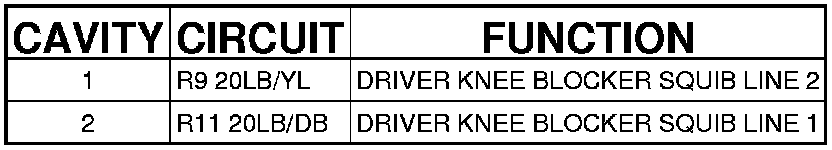

Connector (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY

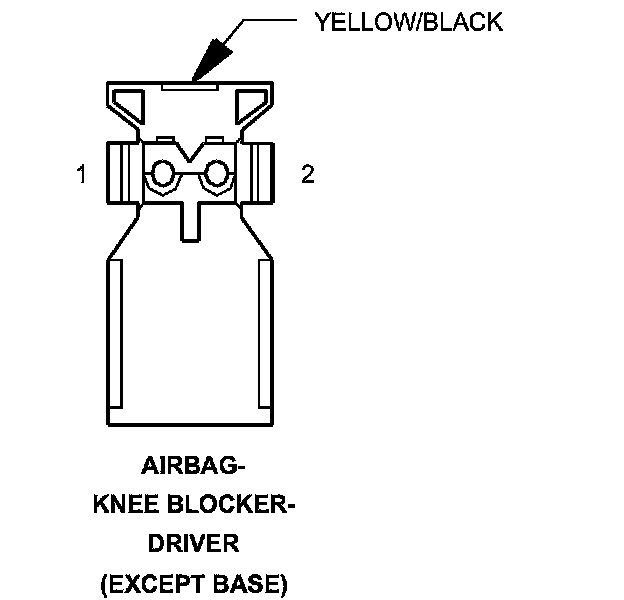

AIRBAG-KNEE BLOCKER-DRIVER (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY
