Driver Airbag Squib 1 (Steering Wheel) 2 Way






Connector - (STEERING WHEEL) 2 WAY

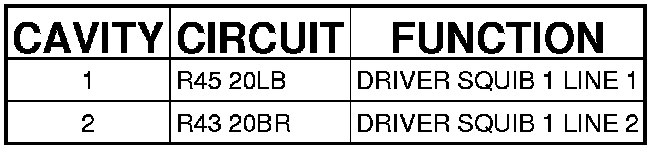

AIRBAG-DRIVER SQUIB 1 - (STEERING WHEEL) 2 WAY
