Right Front Park/Turn Lamp (Engine Compartment) 3 Way

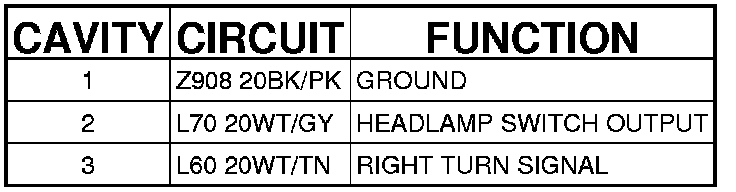

Connector (EXCEPT EXPORT) - (ENGINE COMPARTMENT) 3 WAY

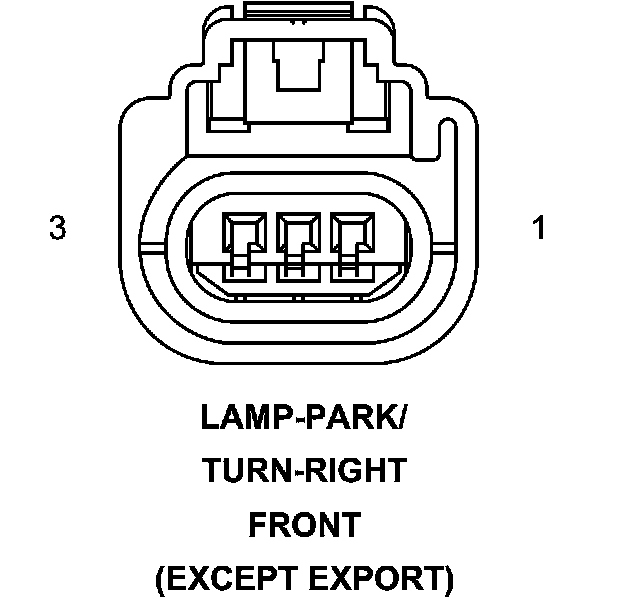

LAMP-PARK/TURN-RIGHT FRONT (EXCEPT EXPORT) - (ENGINE COMPARTMENT) 3 WAY
