Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Right Tail/Stop Lamp (Trailer Tow) 3 Way

Right Tail/Stop Lamp (Trailer Tow) 3 Way

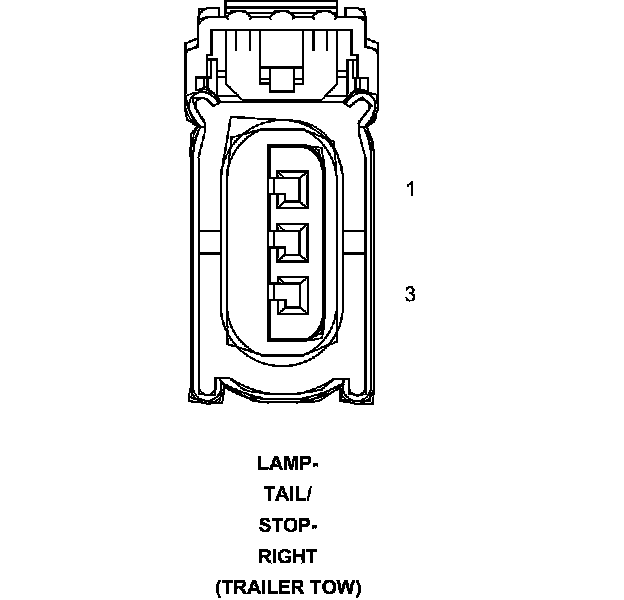

Connector - (TRAILER_TOW) 3 WAY

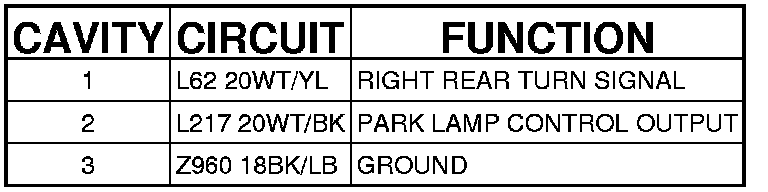

LAMP-TAIL/STOP-RIGHT - (TRAILER_TOW) 3 WAY
