Left Tail/Stop Lamp (Trailer Tow) 3Way

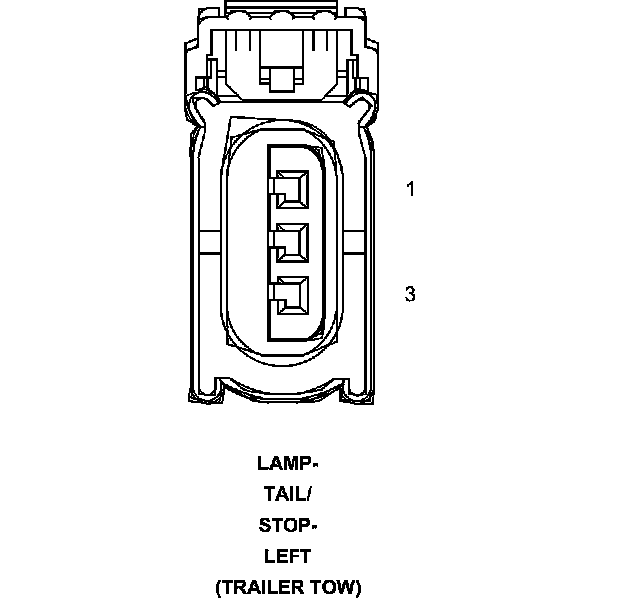

Connector - (TRAILER_TOW) 3WAY




LAMP-TAIL/STOP-LEFT - (TRAILER_TOW) 3WAY
