Boost Gauge - Removal

REMOVAL





1. Open hood, disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, and potentially serious or fatal injury.

2. Remove the instrument panel end caps Instrument Panel End Cap - Removal.
3. Remove the knee blocker airbag (if equipped) Knee Blocker Air Bag - Removal.
4. Remove the steering column opening cover Steering Column Opening Cover - Removal.
5. Remove the instrument panel center bezel Instrument Panel Bezel - Removal.
6. Remove the A-pillar trim, both right and left sides A-Pillar Trim Panel-Removal.
7. Remove the instrument panel top cover Instrument Panel Cover - Removal.
8. Loosen the instrument panel upper panel enough to lift the left side up to remove the boost gauge wiring and electrical connector.Instrument Panel Pad - Removal.

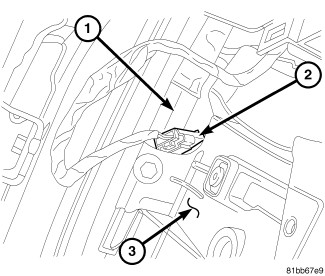

9. Disconnect the one electrical connector (2) the boost gauge.





10. Pull the upper panel towards rear of vehicle just enough on the left side to release the two clips at the cluster.

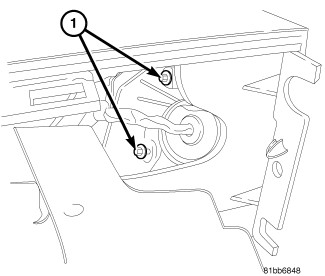

11. From behind the upper panel, remove the two nuts (1) holding the boost gauge to the panel.
12. Slide the gauge out from the center of the bezel.
