Removal

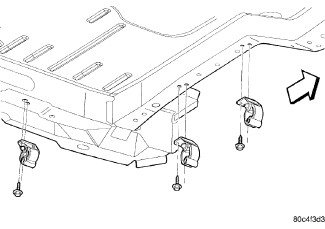

REMOVAL





1. Disconnect isolator from exhaust system component.
2. Remove screws attaching isolator bracket to underbody.
3. Remove isolator assembly.
