Camshaft Position Solenoid 1/1 (Powertrain) 2 Way

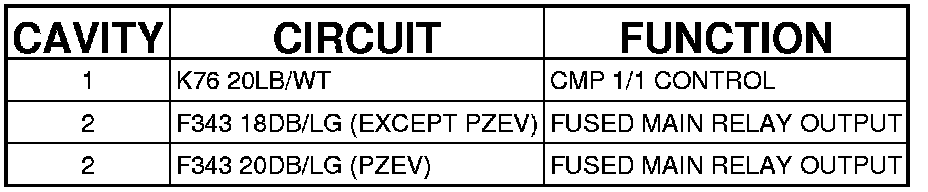

Connector - (POWERTRAIN) 2 WAY

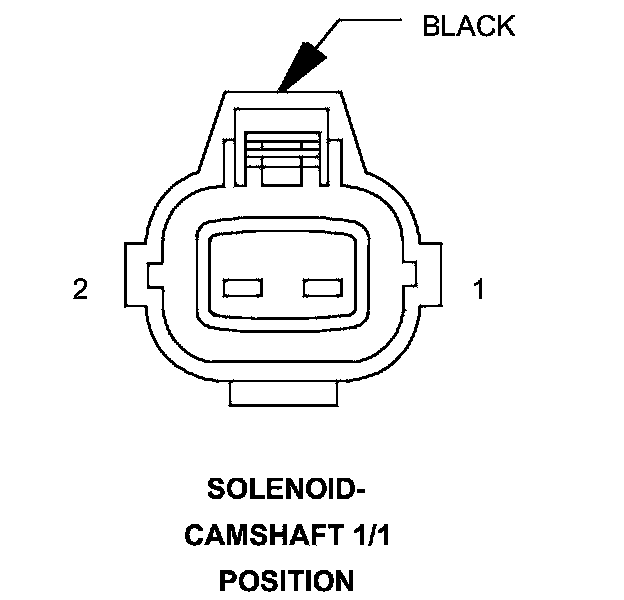

SOLENOID-CAMSHAFT 1/1 POSITION - (POWERTRAIN) 2 WAY
