Connector Location Index

DESCRIPTION
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

CONNECTORS

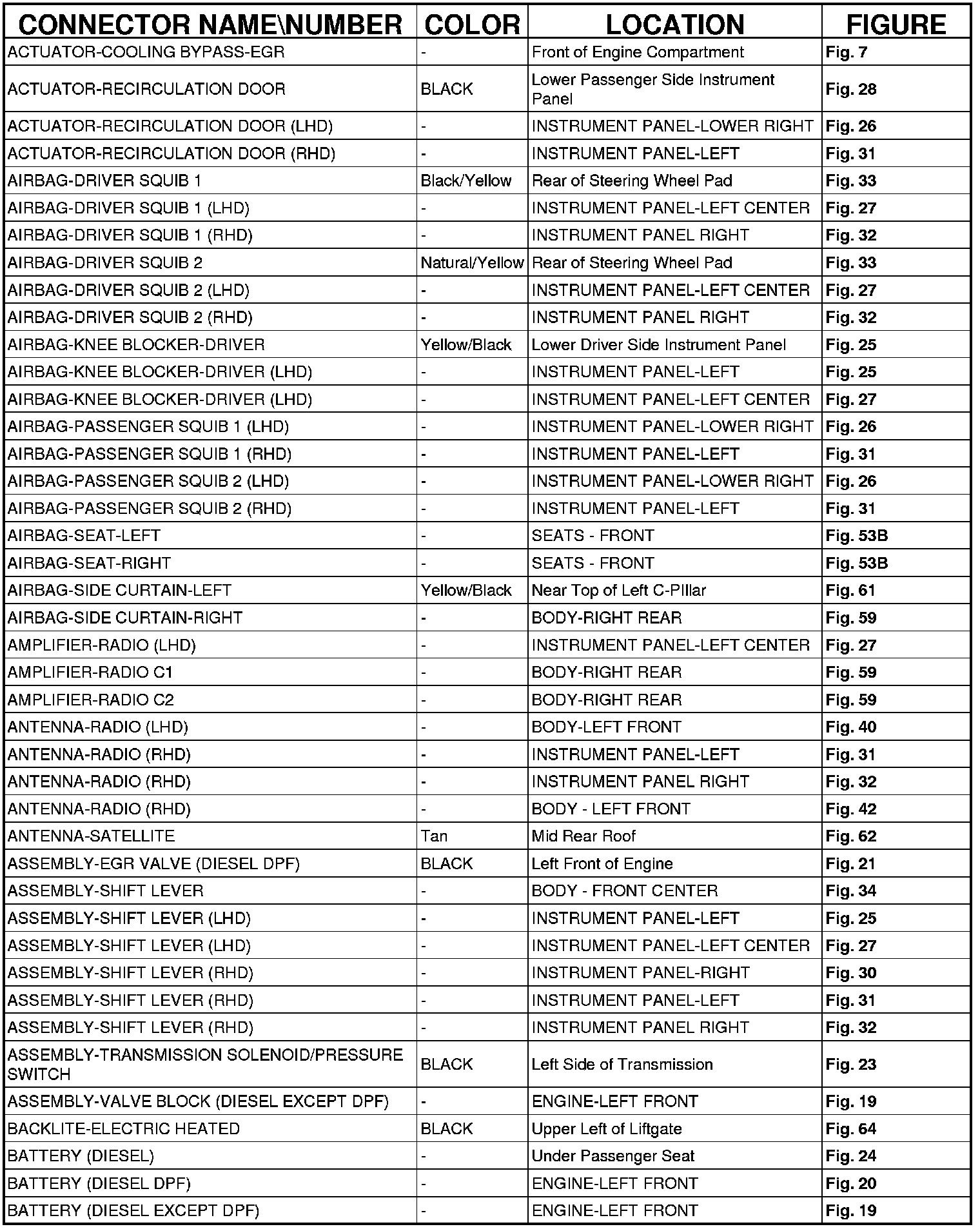

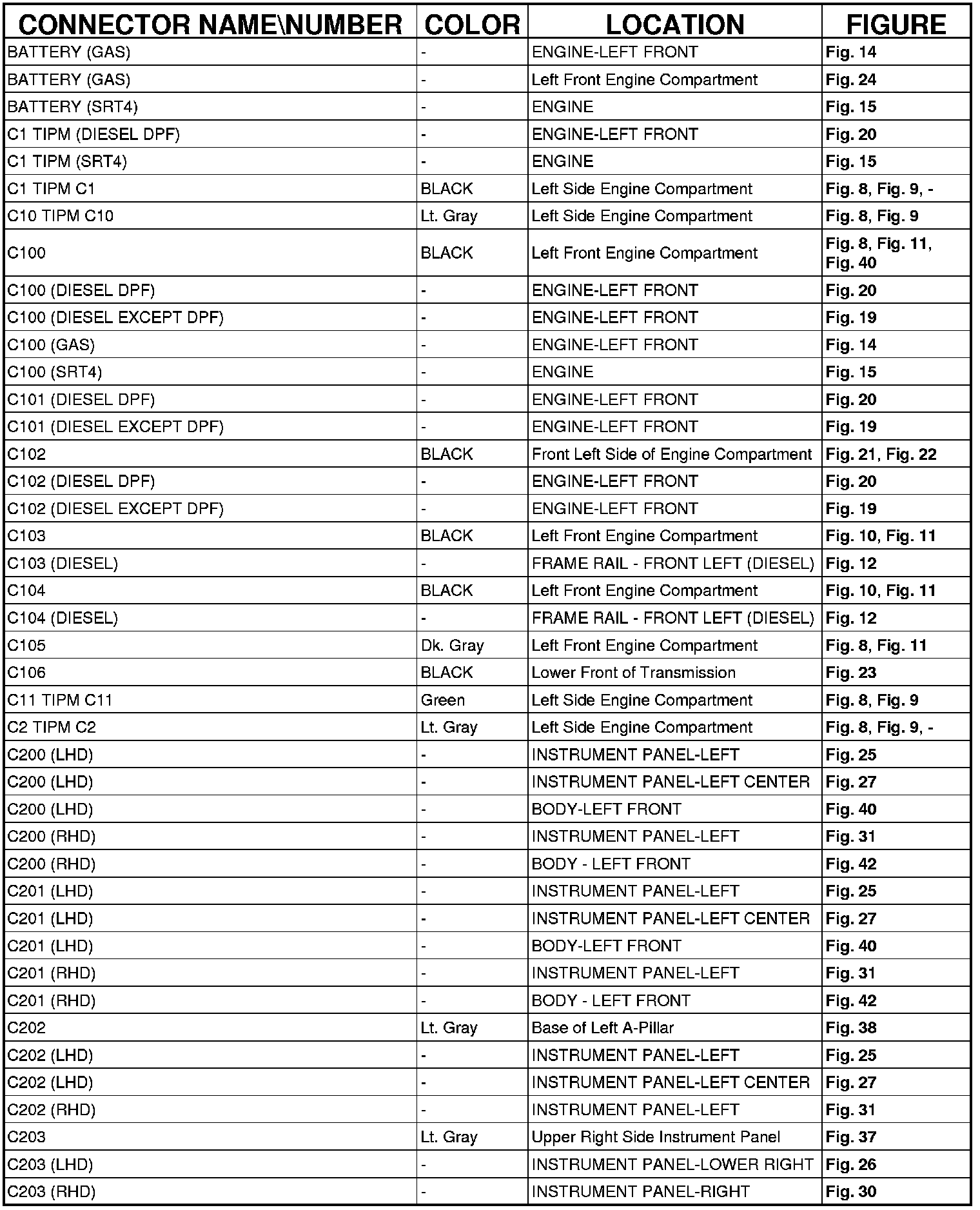

Ac-Ba:

Ba-C203:

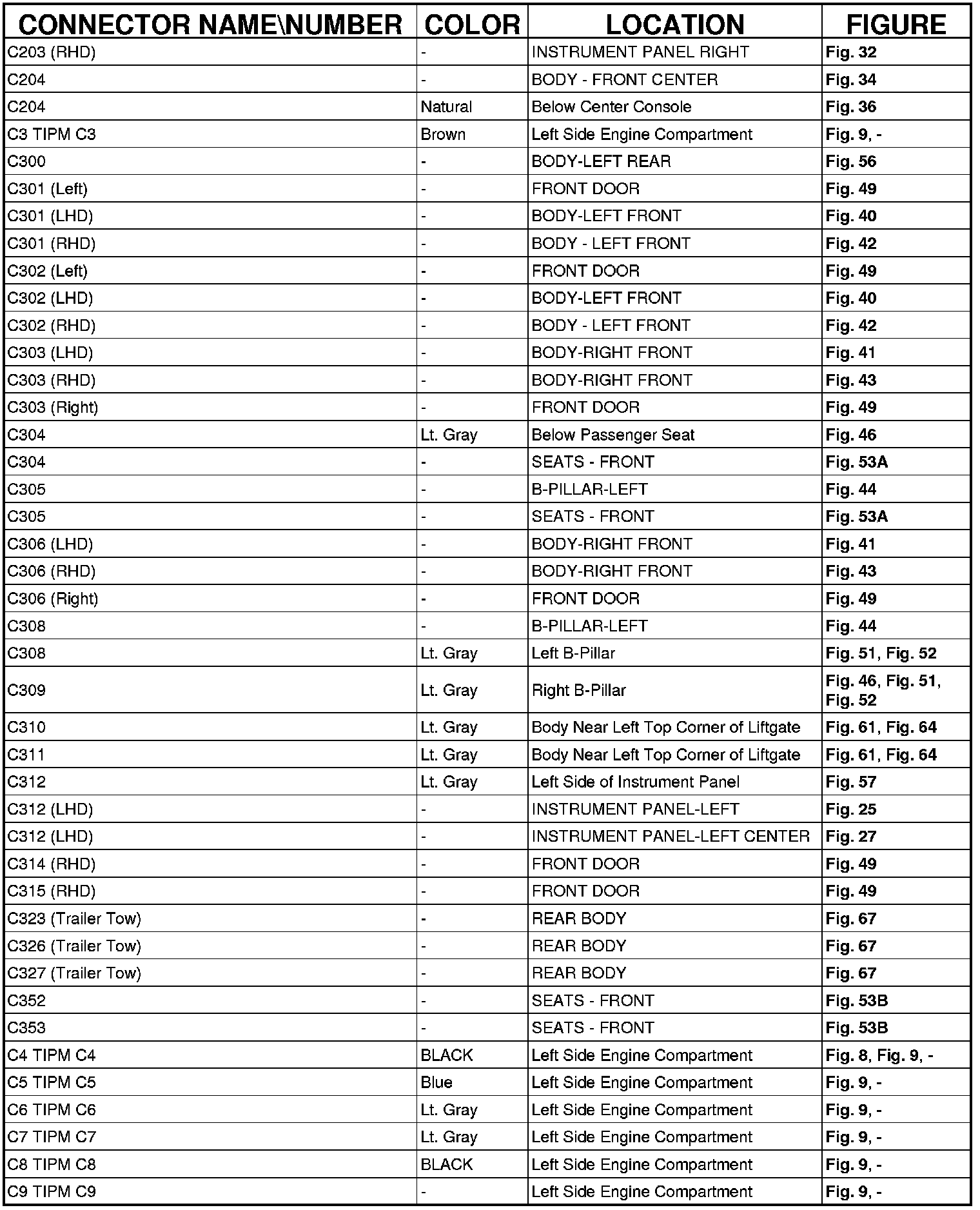

C203-C9:

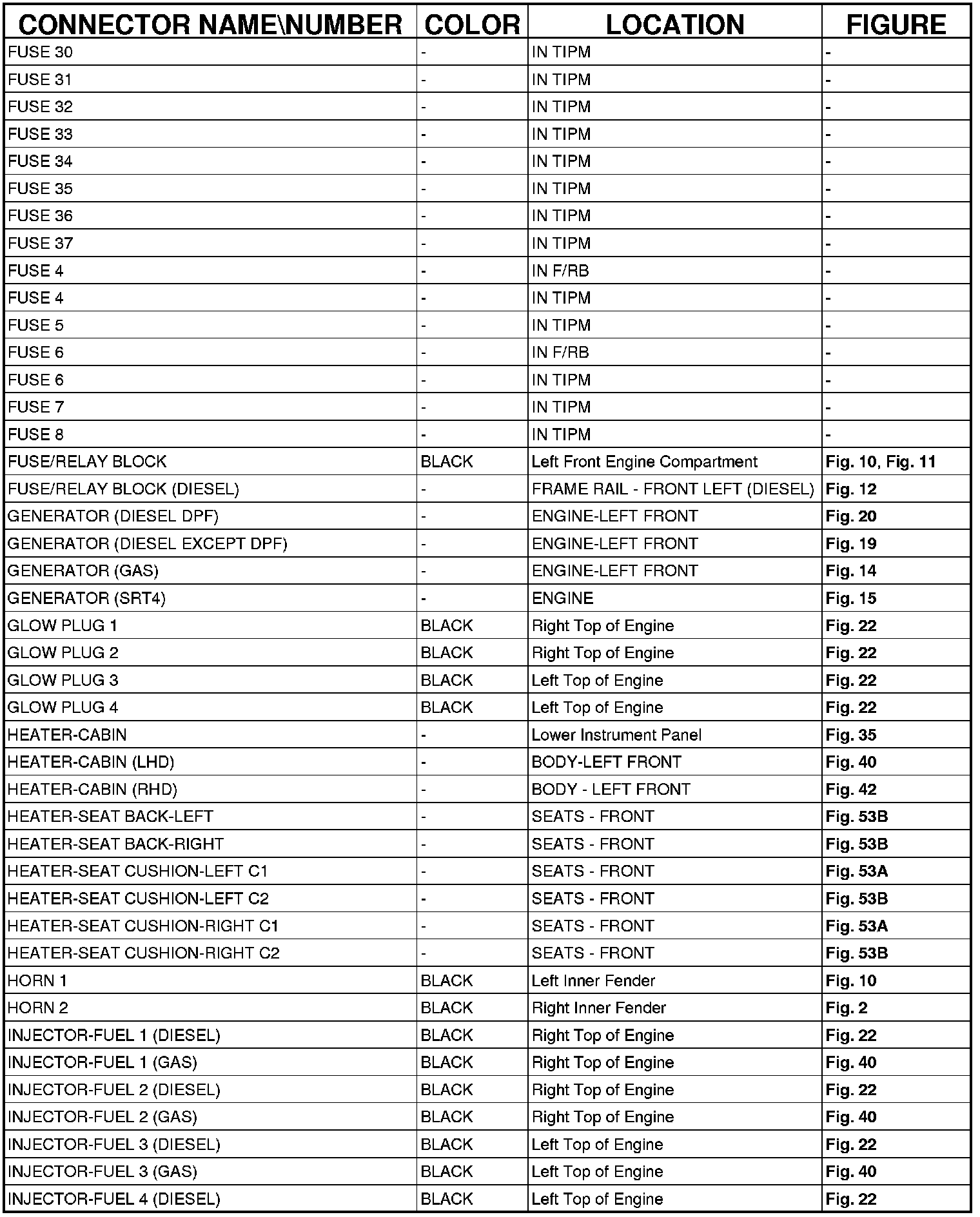

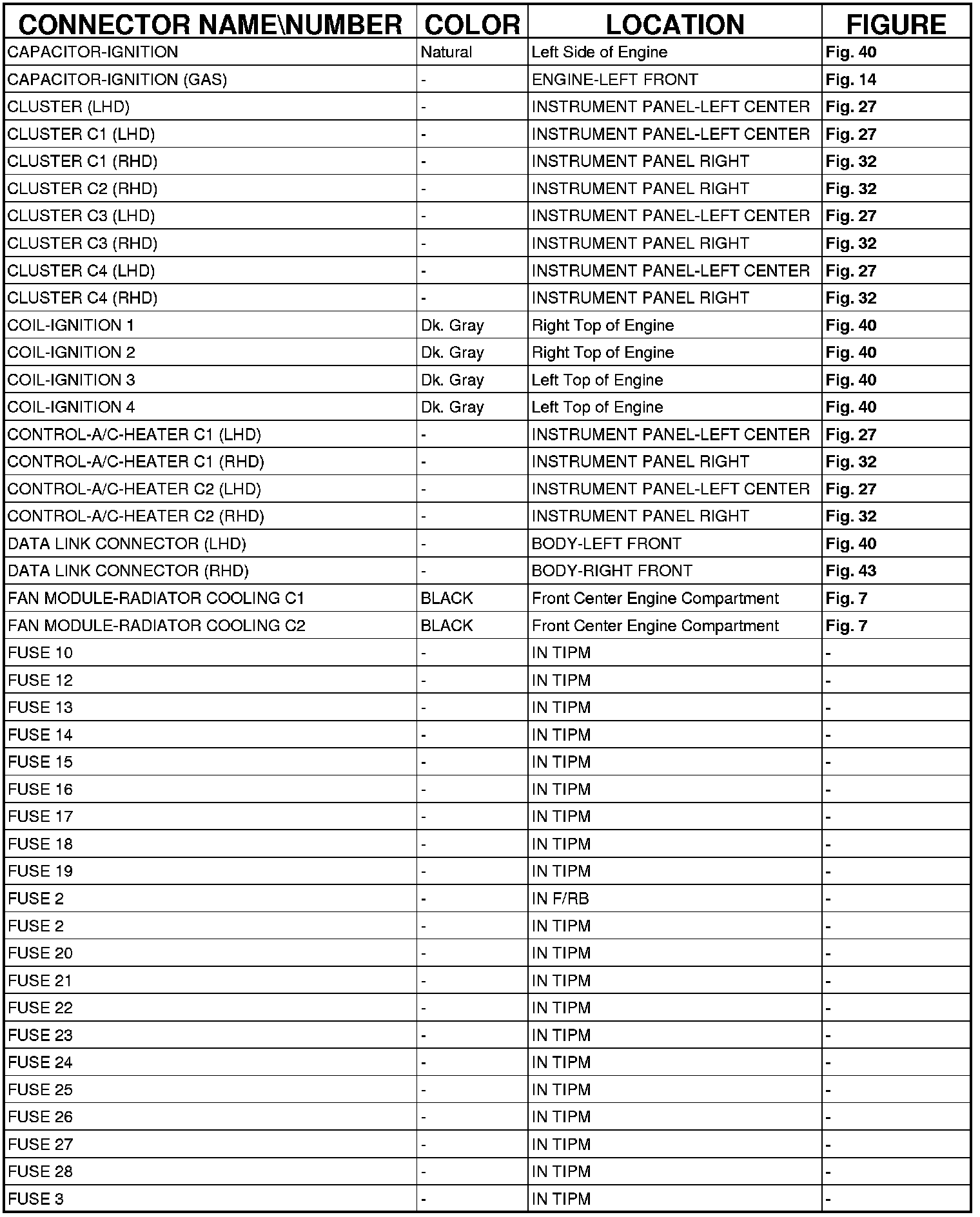

Ca-Fu:

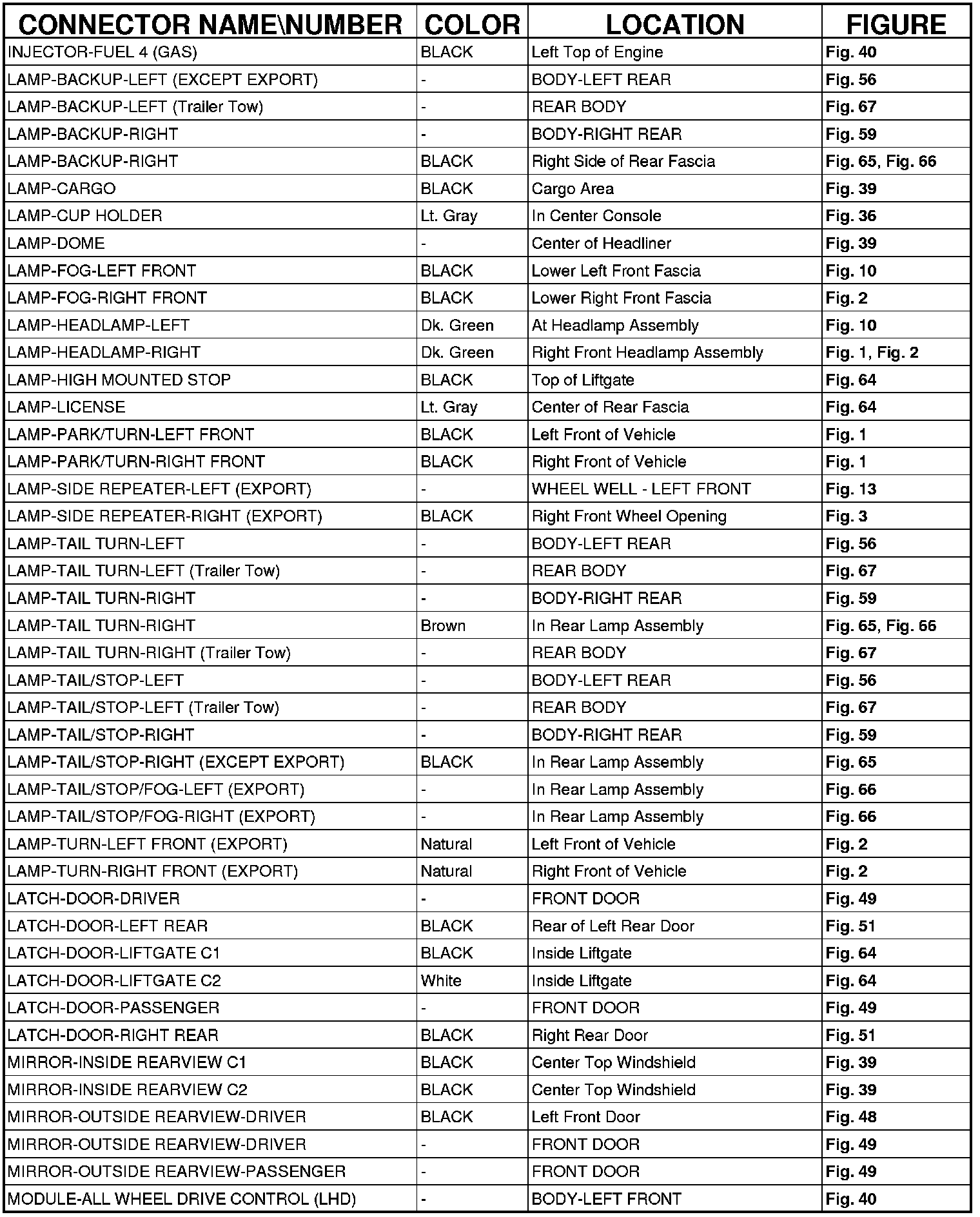

Fu-In:

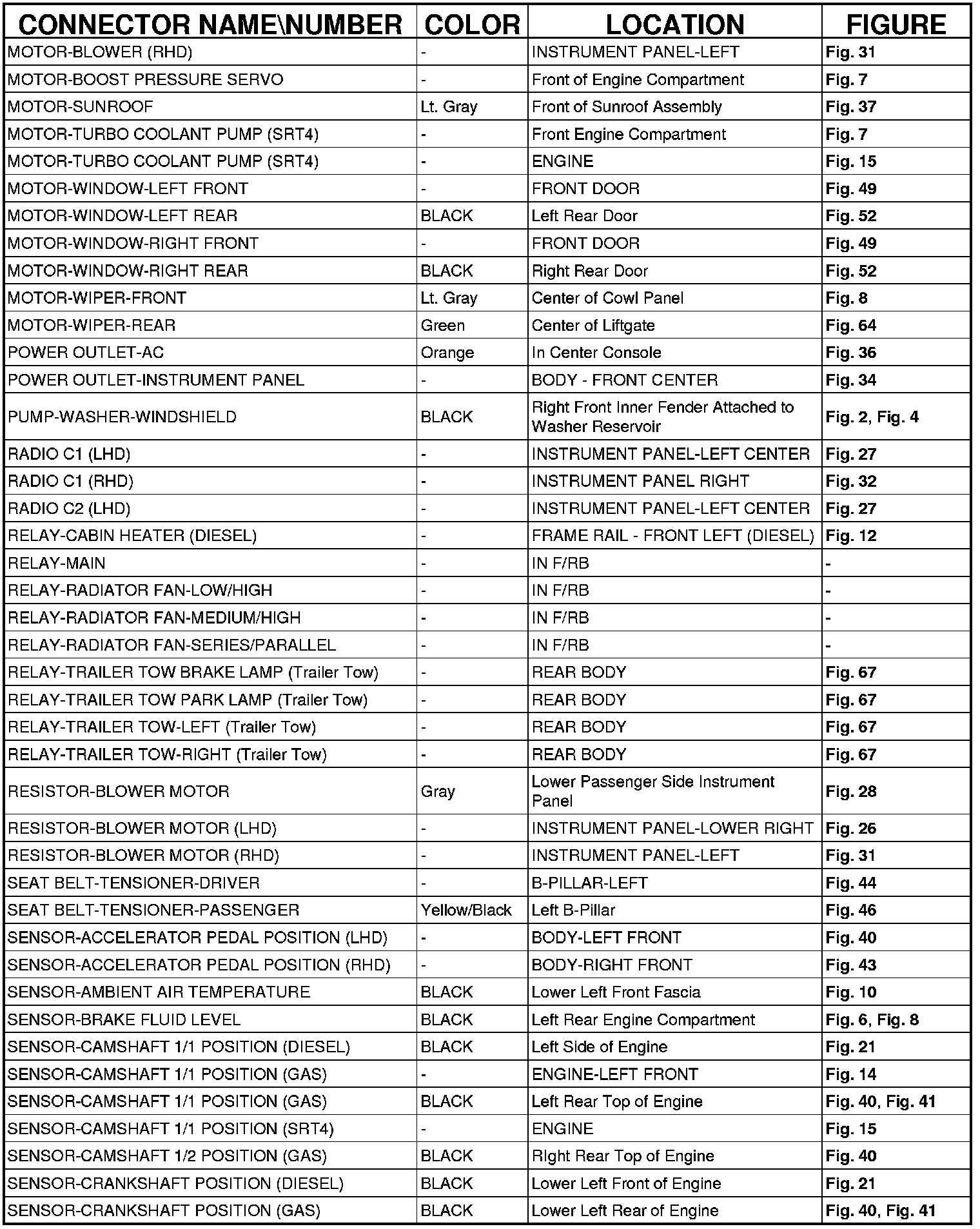

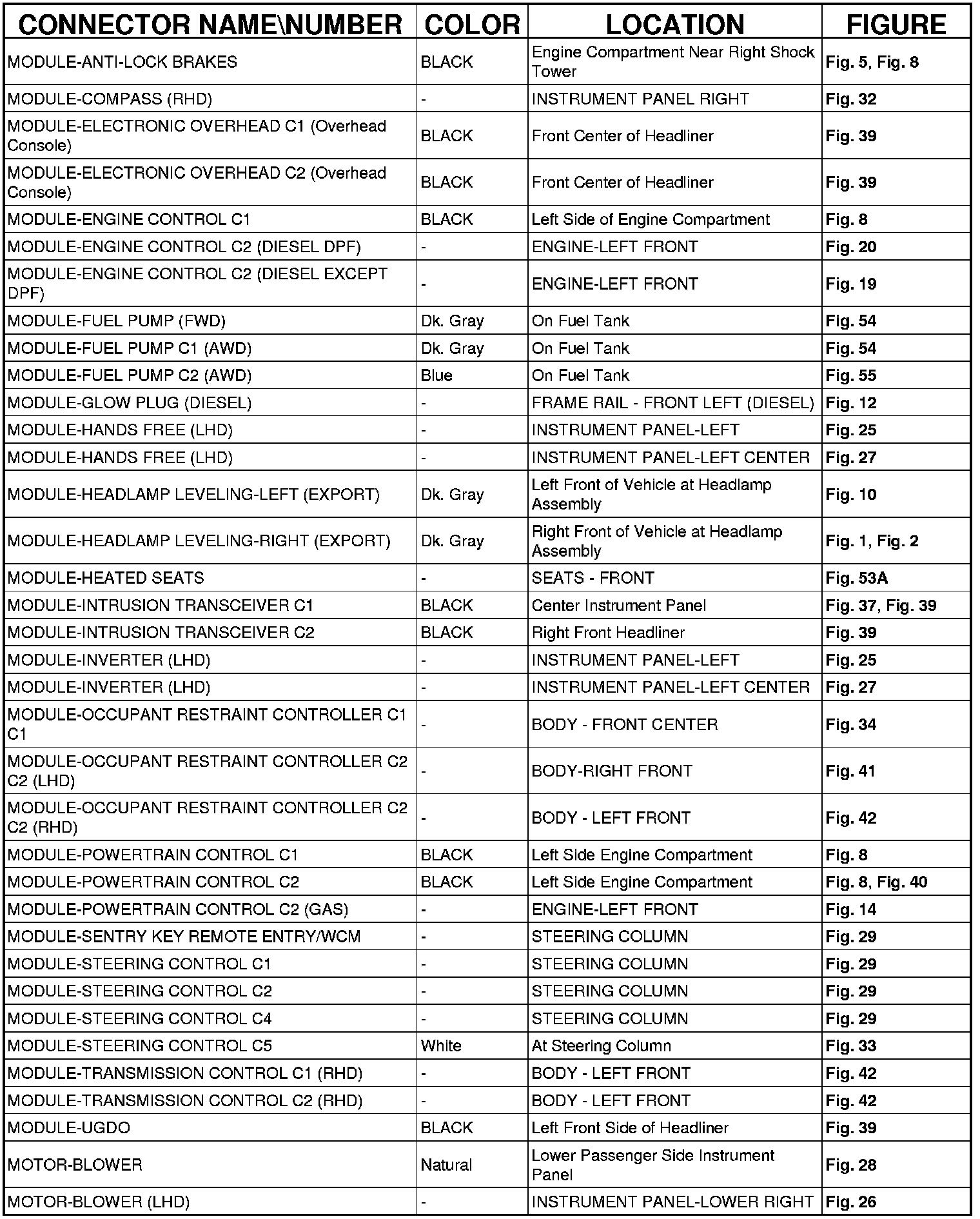

In-Mo:

Mo-Mo:

Mo-Se:

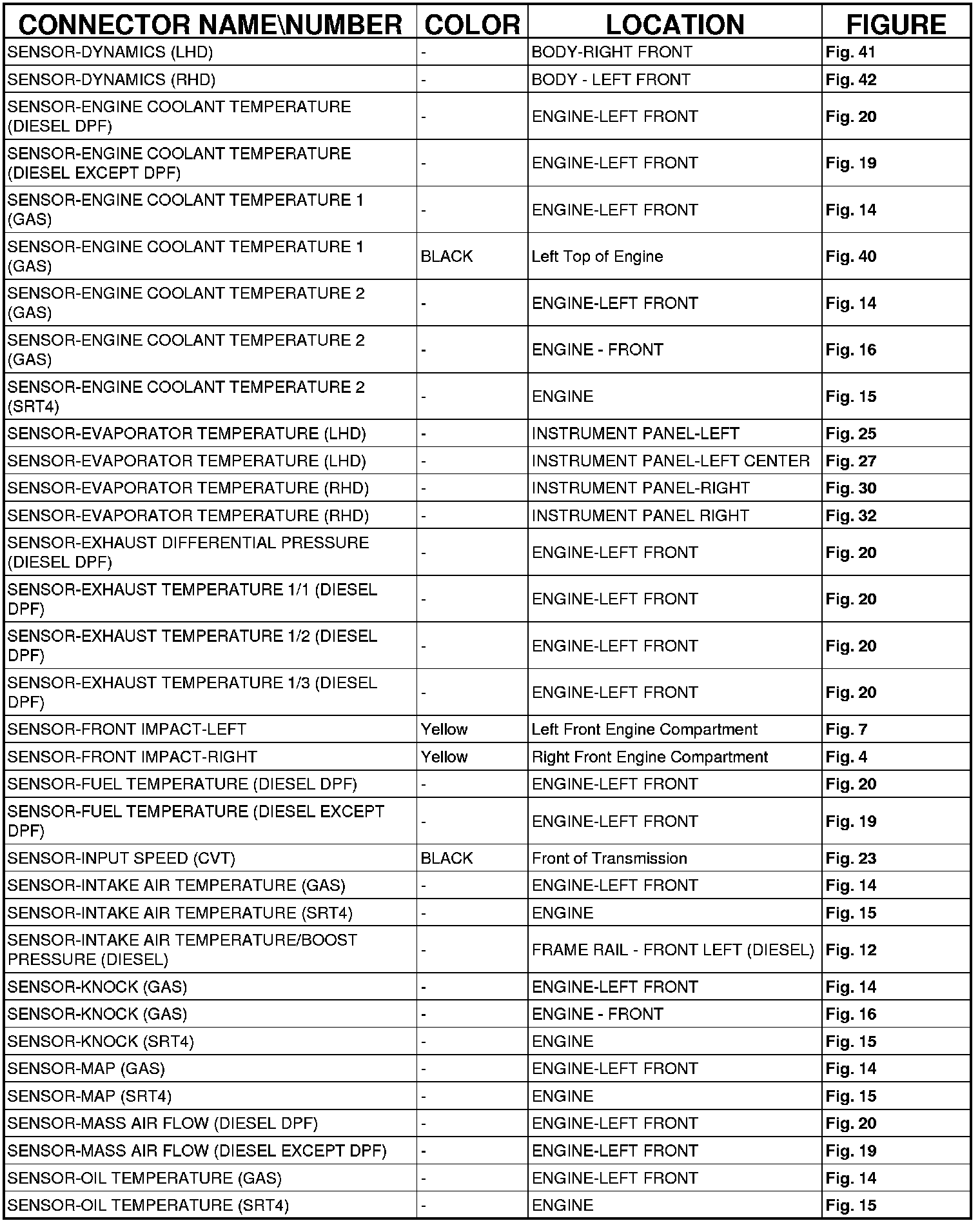

Se-Se:

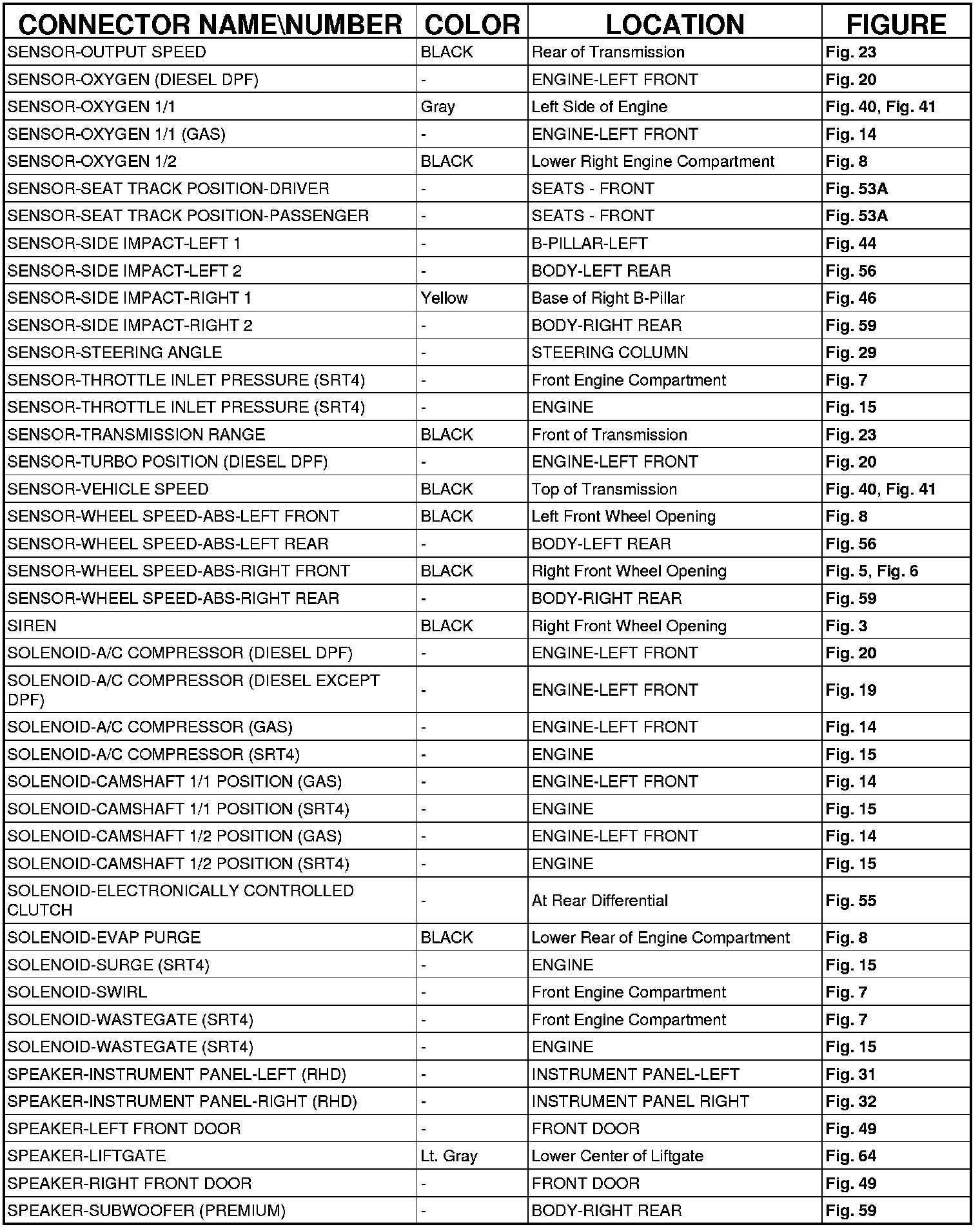

Se-Sp:

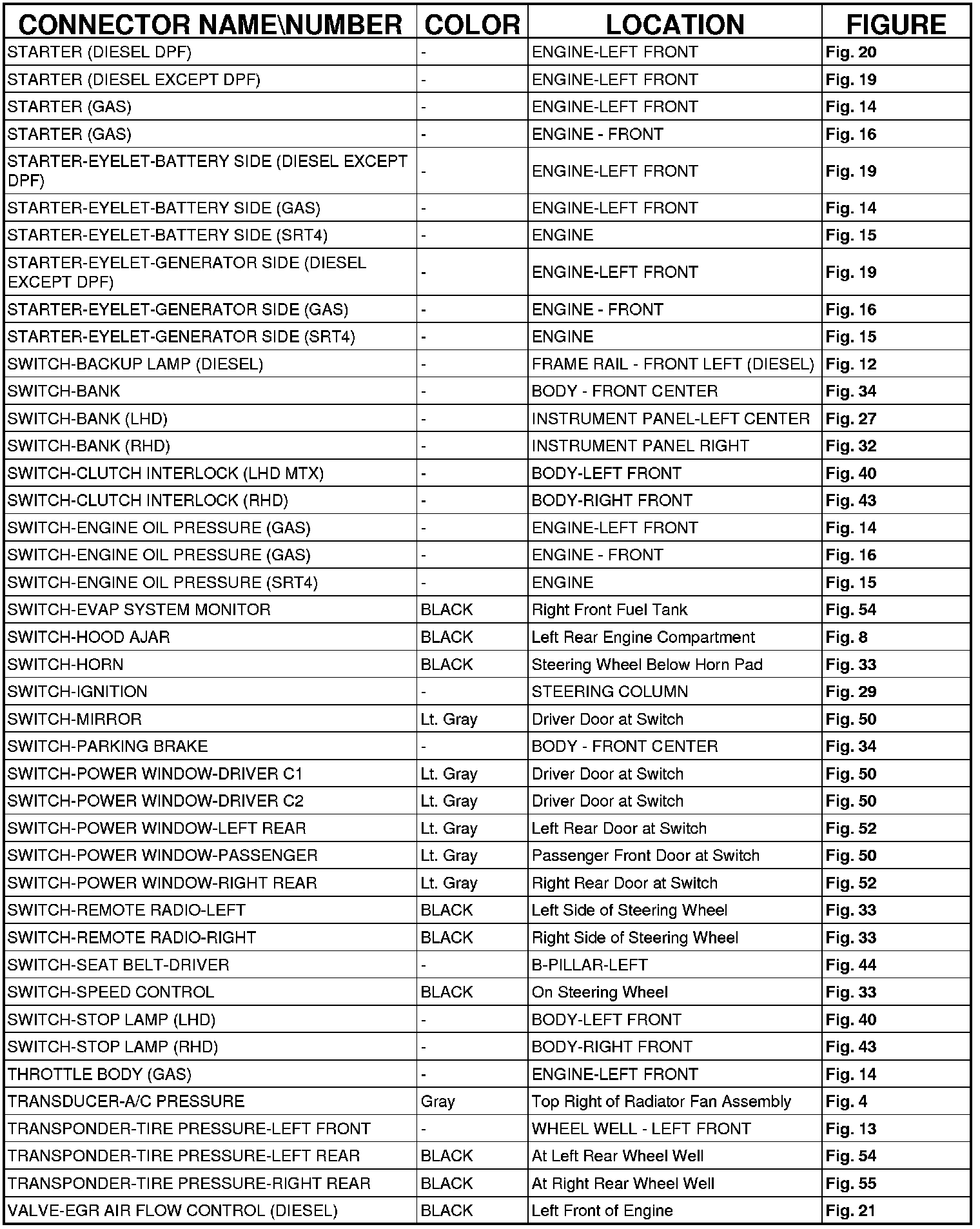

St-Va:

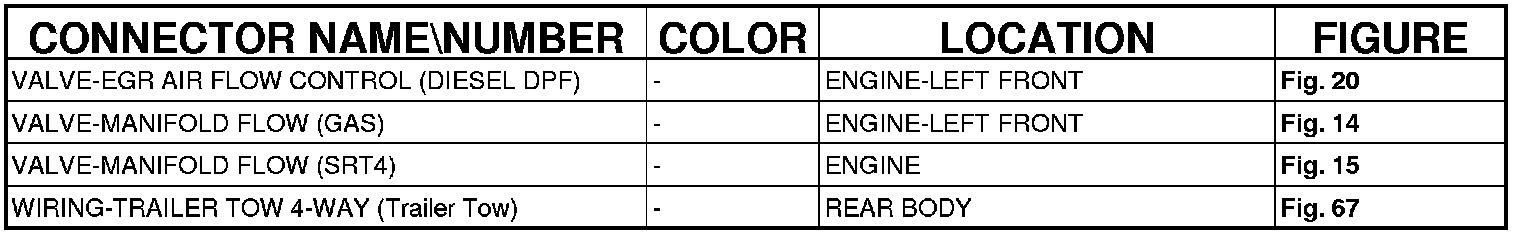

Va-Wi:
