Left Front ABS Wheel Speed Sensor (Sensor Side) (Engine Compartment) 2 Way

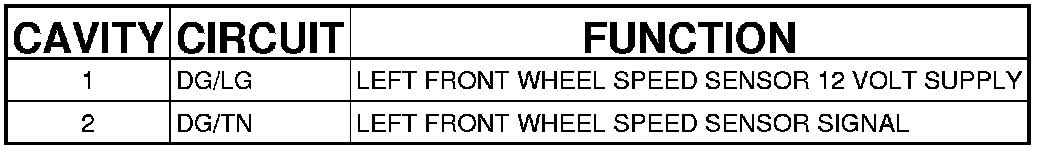

Connector (SENSOR SIDE) - (ENGINE COMPARTMENT) 2 WAY

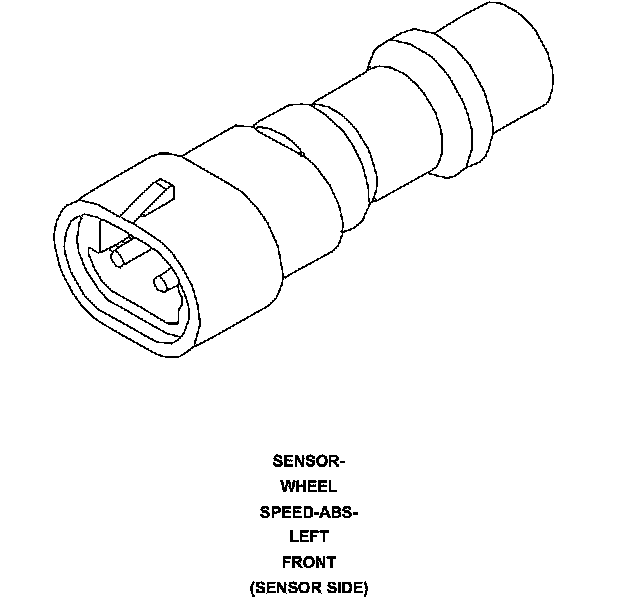

SENSOR-WHEEL SPEED-ABS-LEFT FRONT (SENSOR SIDE) - (ENGINE COMPARTMENT) 2 WAY
