Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Voice Activation Module

Voice Activation Module

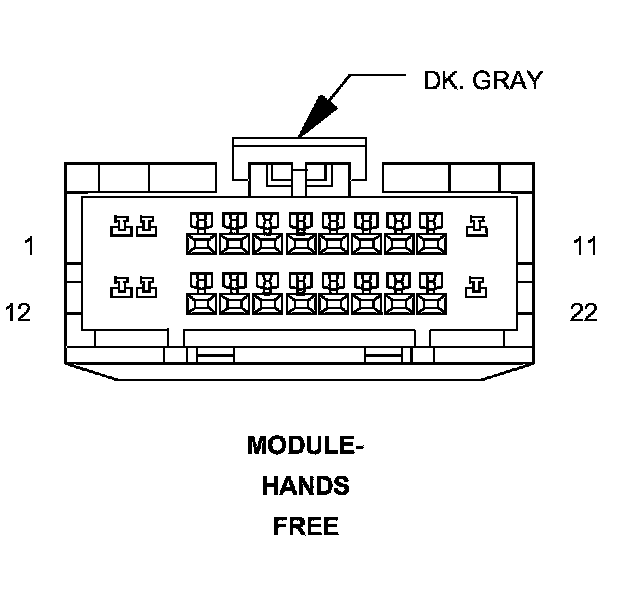

Connector - (INSTRUMENT PANEL) 22 WAY

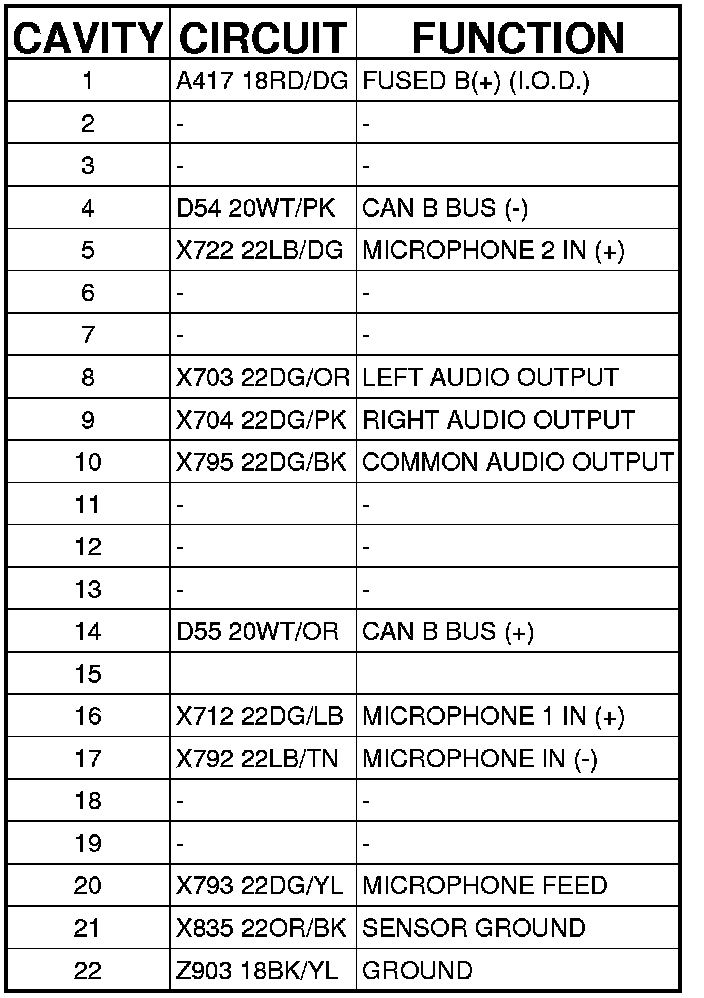

MODULE-HANDS FREE - (INSTRUMENT PANEL) 22 WAY
