Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

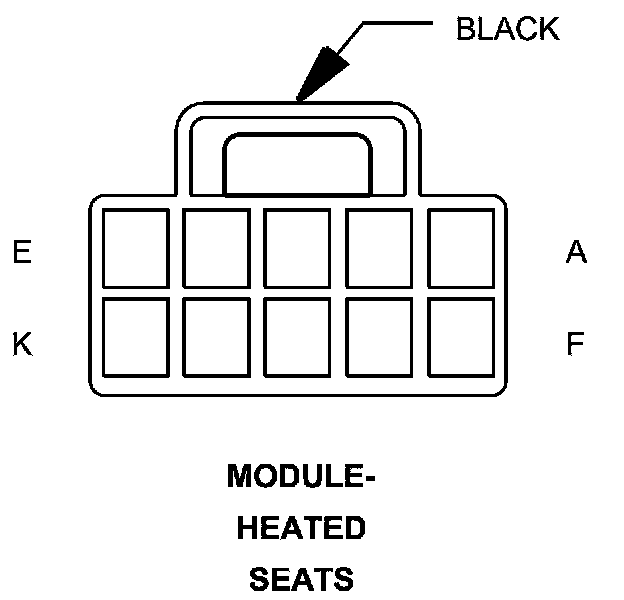

Connector - (DRIVER SEAT) 10 WAY

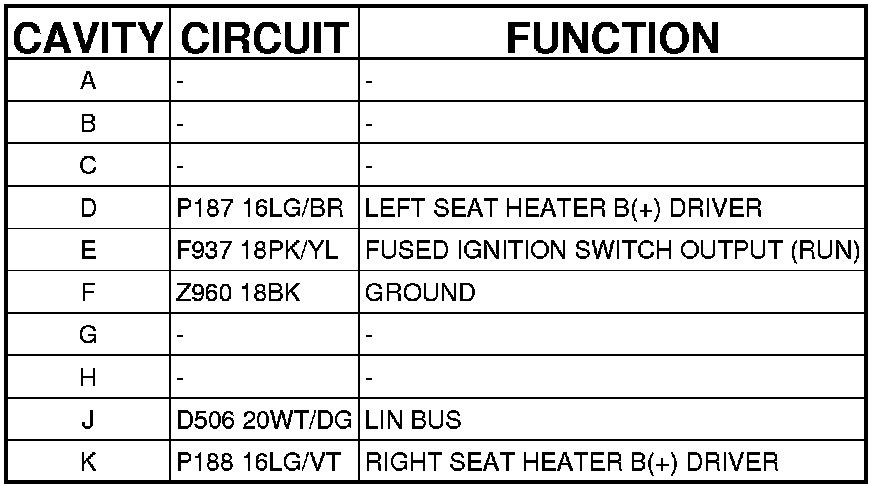

MODULE-HEATED SEATS - (DRIVER SEAT) 10 WAY
