Satellite Receiver C2 (SDARS Jumper) 2 Way

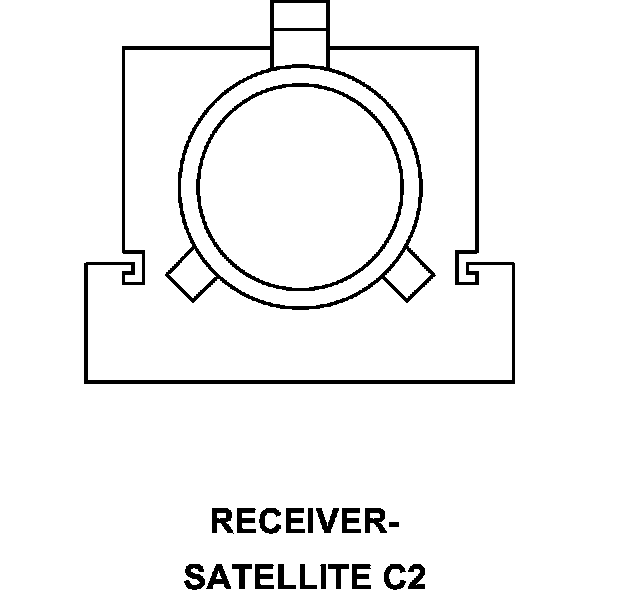

Connector C2 - (SDARS JUMPER) 2 WAY

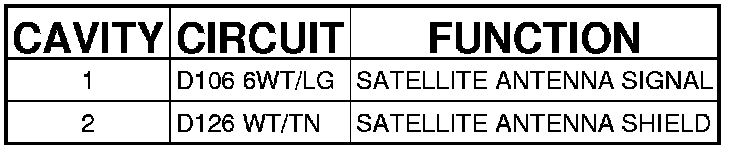

RECEIVER-SATELLITE - (SDARS JUMPER) 2 WAY
