Satellite Receiver C1 (SDARS Jumper) 12 Way

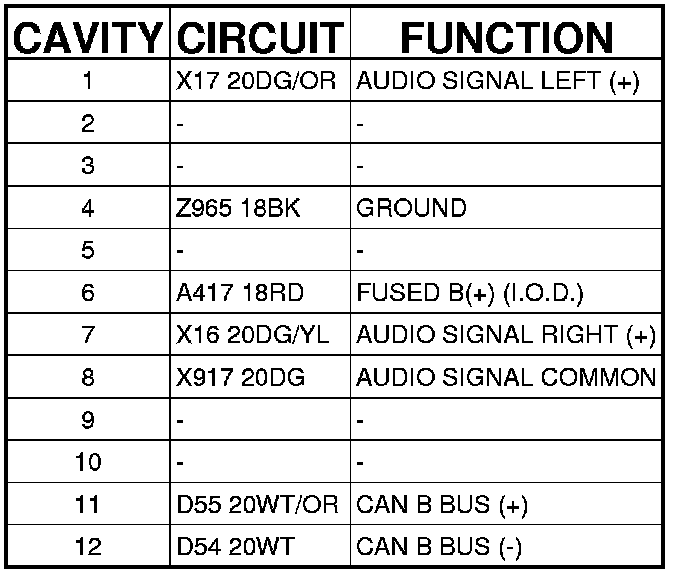

Connector C1 - (SDARS JUMPER) 12 WAY

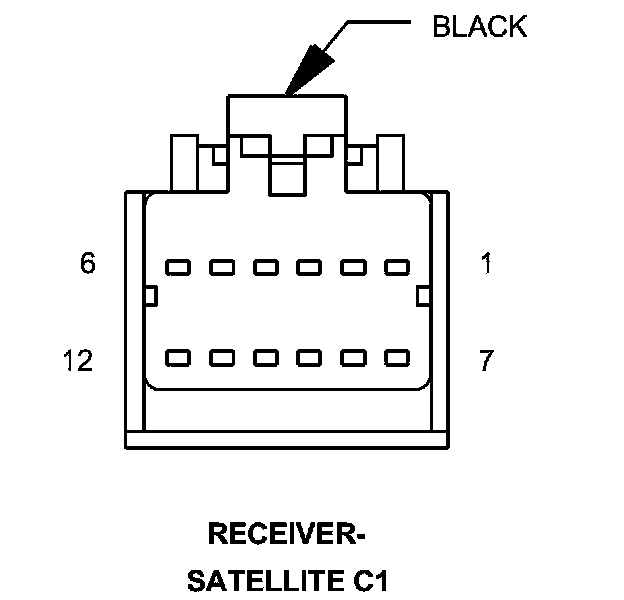

RECEIVER-SATELLITE - (SDARS JUMPER) 12 WAY
