Radio C2 (Satellite Digital Audio Overlay) 10 Way

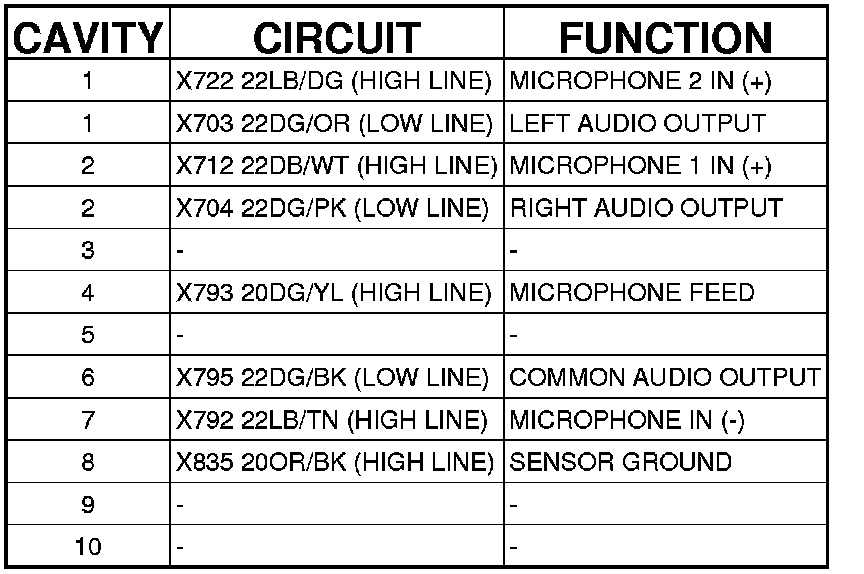

Connector C2 - (SATELLITE DIGITAL AUDIO OVERLAY) 10 WAY




RADIO - (SATELLITE DIGITAL AUDIO OVERLAY) 10 WAY
