Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> System Diagram >> Radio C1 (Instrument Panel) 22 Way

Radio C1 (Instrument Panel) 22 Way

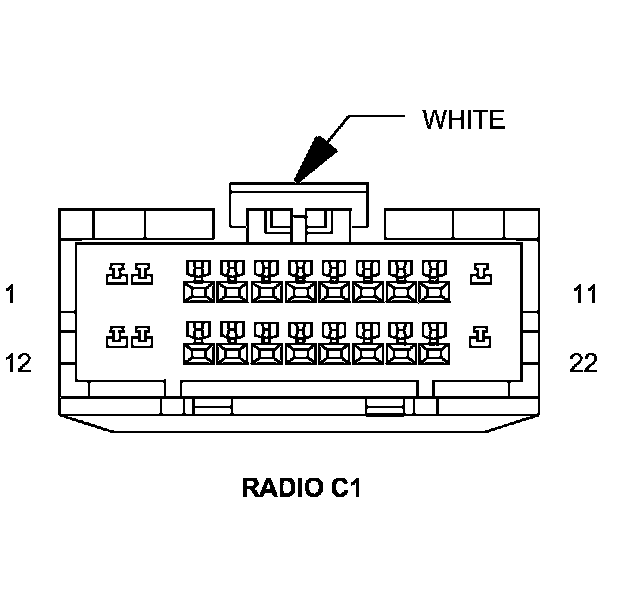

Connector C1 - (INSTRUMENT PANEL) 22 WAY

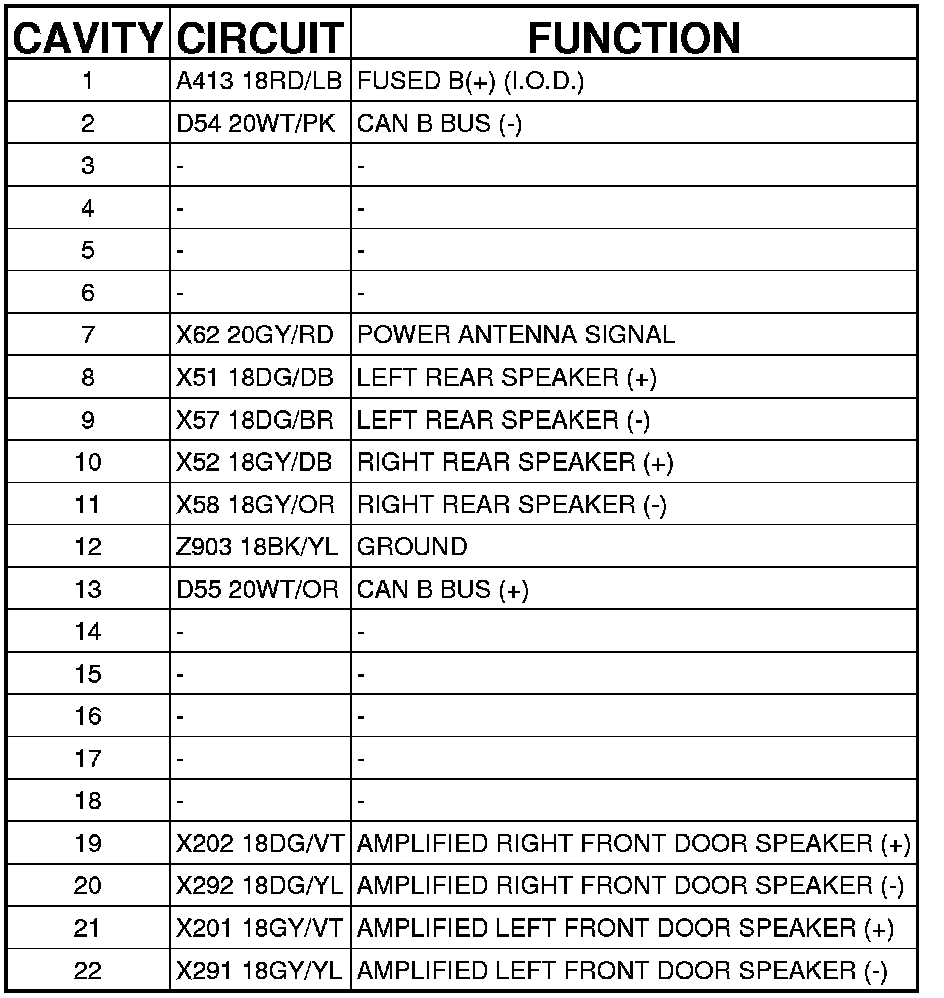

RADIO - (INSTRUMENT PANEL) 22 WAY
