Dodge
>>
2009
>>
Caliber L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Level Sensor
>>
Fuel Pump Module C1 (AWD) (Body) 5 Way
Fuel Pump Module C1 (AWD) (Body) 5 Way

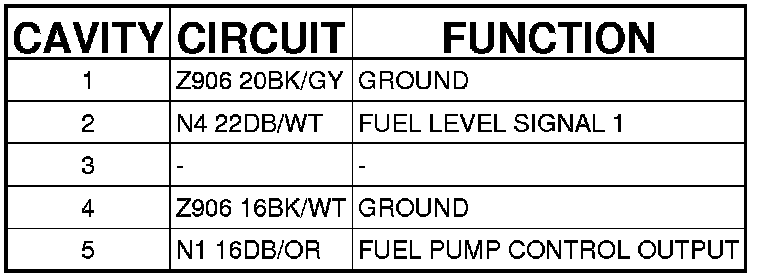

Connector C1 (AWD) - (BODY) 5 WAY

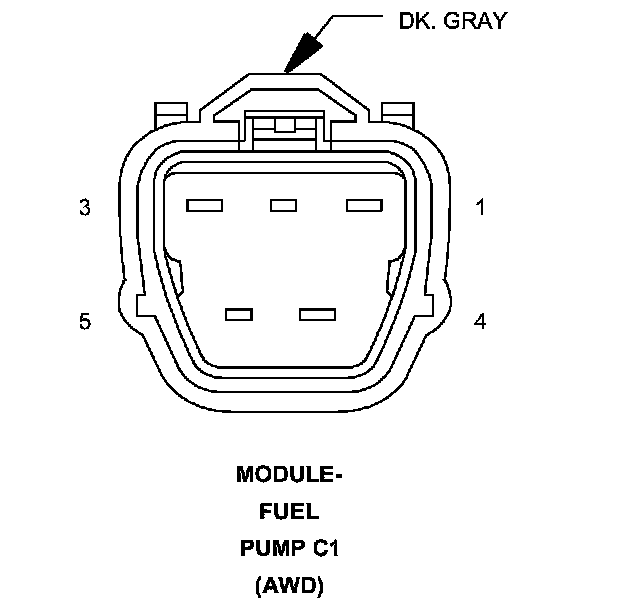

MODULE-FUEL PUMP (AWD) - (BODY) 5 WAY
