Differential Assembly

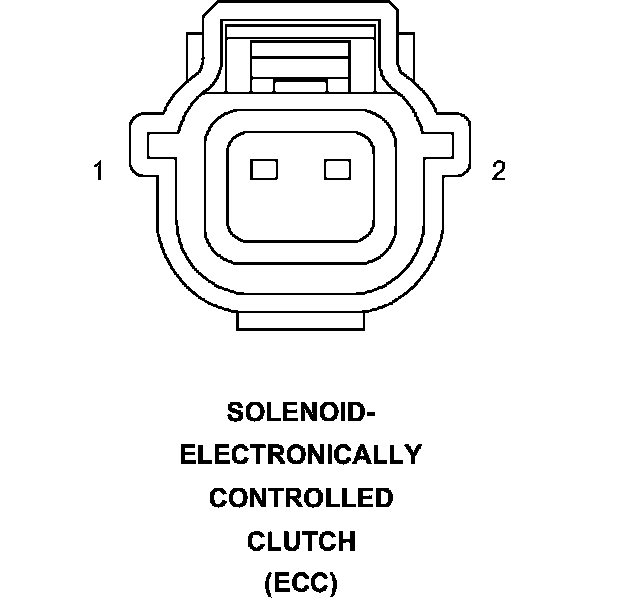

Connector (ECC) - (DIFFERENTIAL VENT JUMPER) 2 WAY

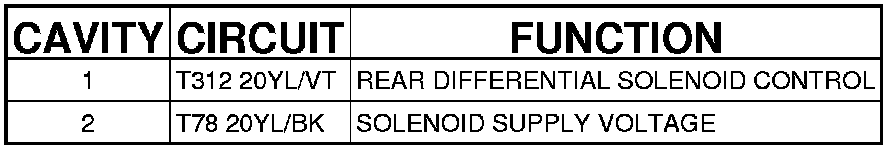

SOLENOID-ELECTRONICALLY CONTROLLED CLUTCH (ECC) - (DIFFERENTIAL VENT JUMPER) 2 WAY
