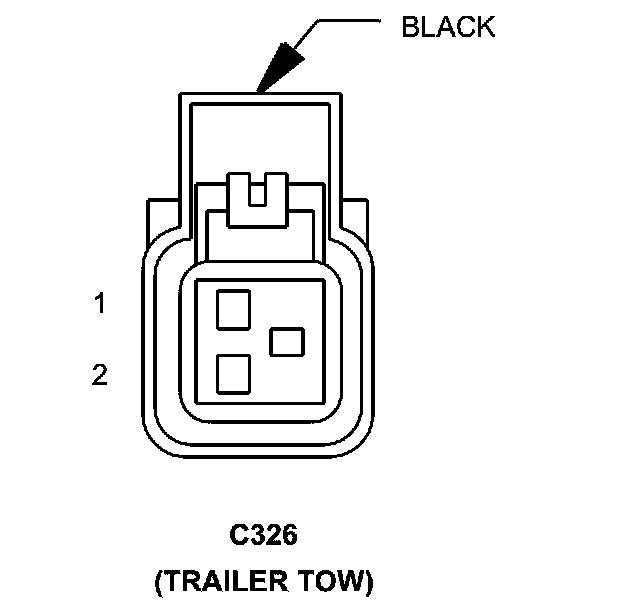

C326 (Trailer Tow) (Body Side)
C326 (Trailer Tow) (Body Side)

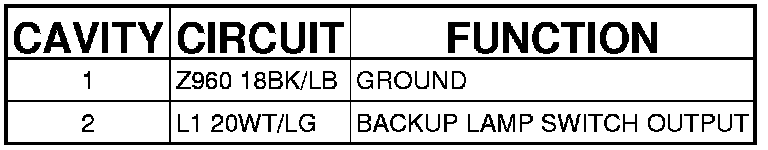

Connector (TRAILER TOW) - (BODY SIDE) 2 WAY
C323 (TRAILER TOW) - (BODY SIDE) 2 WAY
