C312 (SDARS Jumper Side) 3 Way

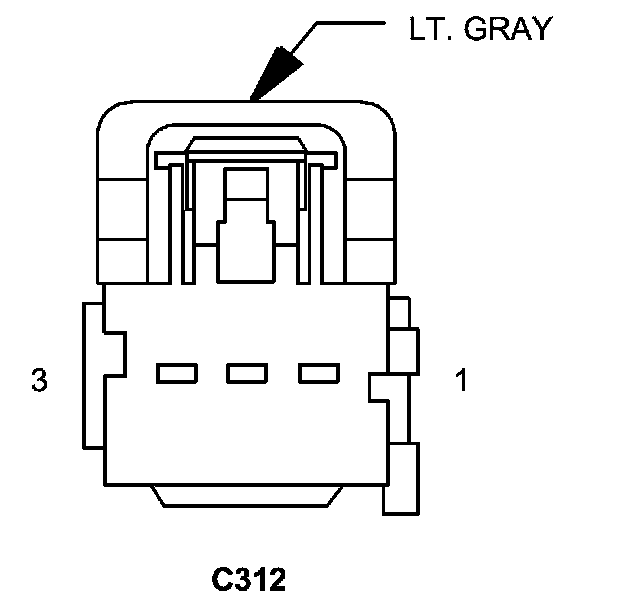

Connector - (SDARS JUMPER SIDE) 3 WAY

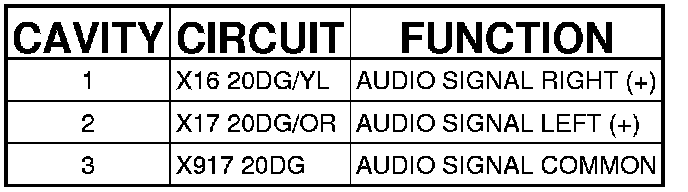

C312 - (SDARS JUMPER SIDE) 3 WAY
