Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C311 (Liftgate Side) 6 Way

C311 (Liftgate Side) 6 Way

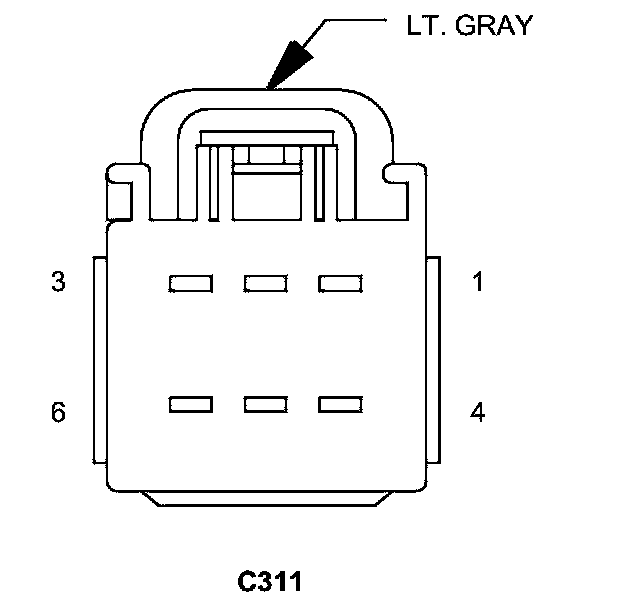

Connector - (LIFTGATE SIDE) 6 WAY

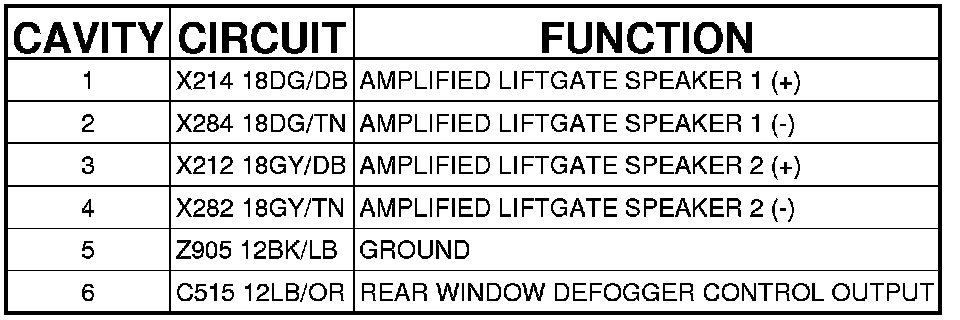

C311 - (LIFTGATE SIDE) 6 WAY
