C308 (Left Rear Door Side) 14 Way
C308 (Left Rear Door Side) 14 Way

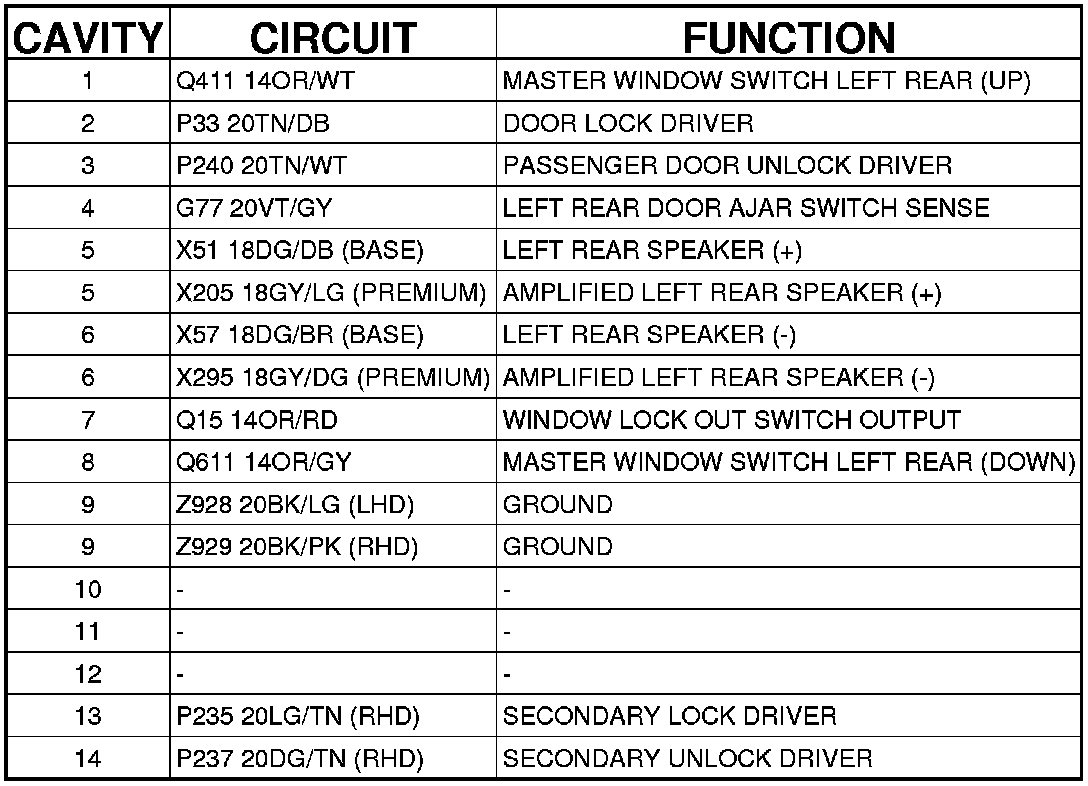

Connector - (LEFT REAR DOOR SIDE) 14 WAY
C308 - (LEFT REAR DOOR SIDE) 14 WAY
