C305 (Except SAB) (Body Side) 8 Way
C305 (Except SAB) (Body Side) 8 Way

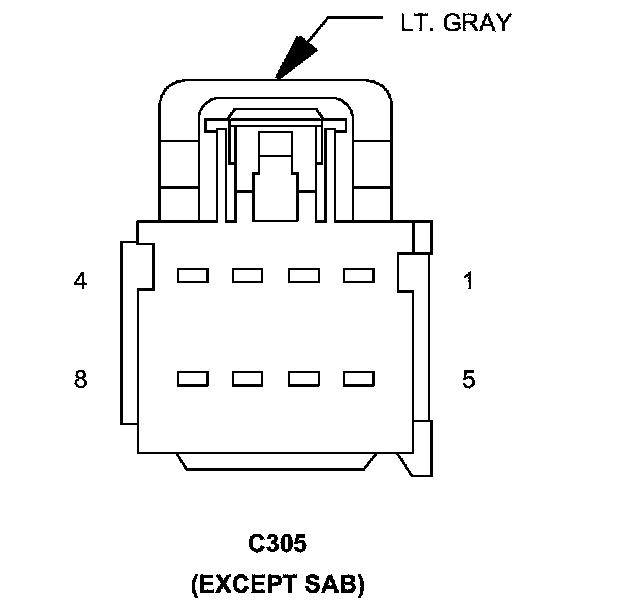

Connector (EXCEPT SAB) - (BODY SIDE) 8 WAY

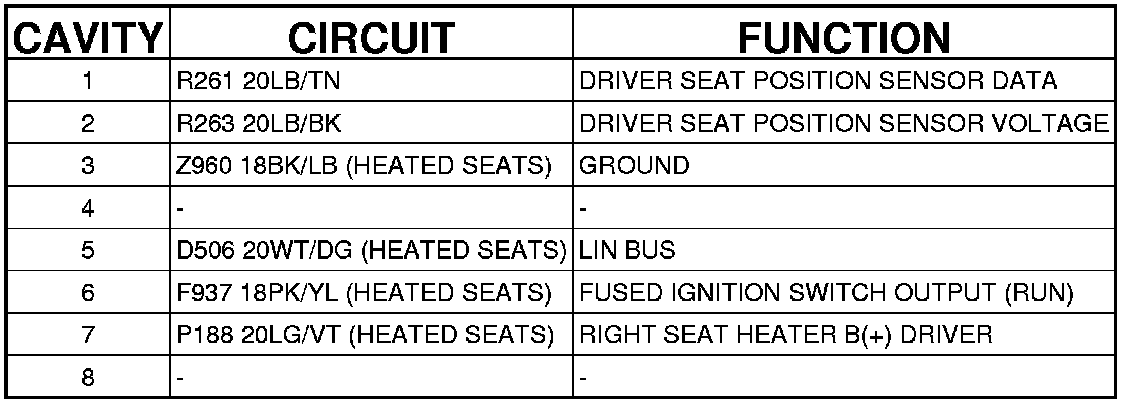

C305 (EXCEPT SAB) - (BODY SIDE) 8 WAY
