C302 (Left Front Door Side) 14 Way
C302 (Left Front Door Side) 14 Way

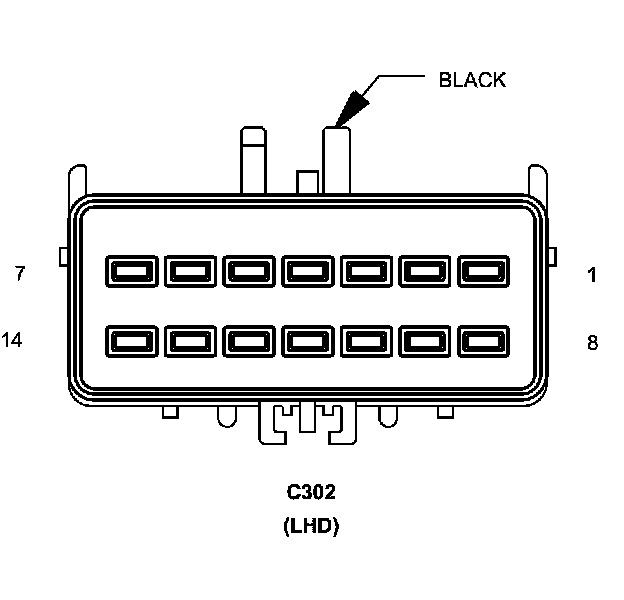

Connector (LHD) - (LEFT FRONT DOOR SIDE) 14 WAY

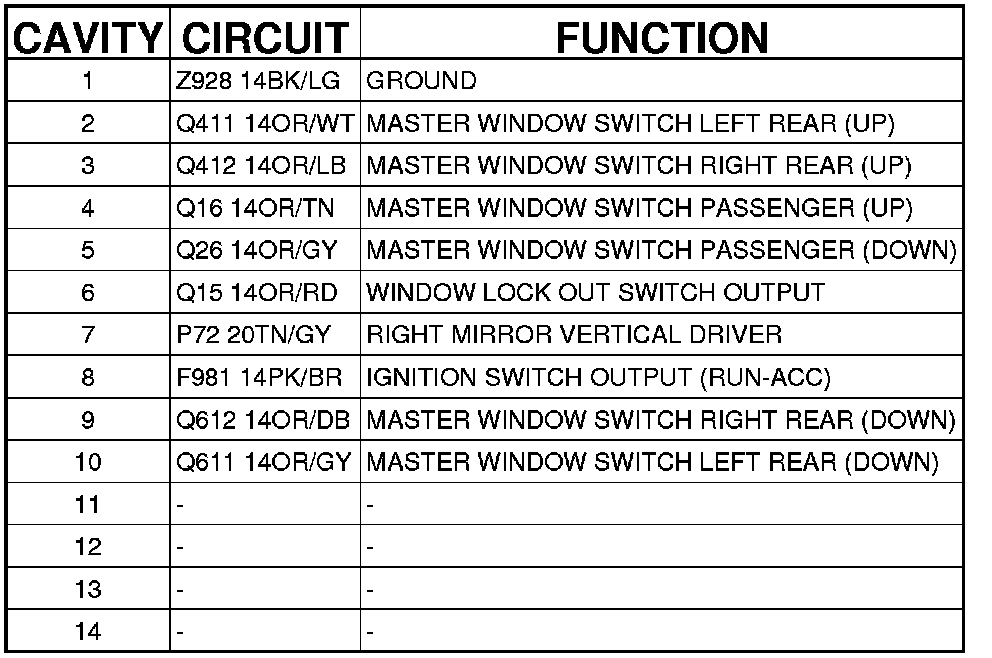

C302 (LHD) - (LEFT FRONT DOOR SIDE) 14 WAY
