C301 (Left Front Door Side) 16 Way
C301 (Left Front Door Side) 16 Way

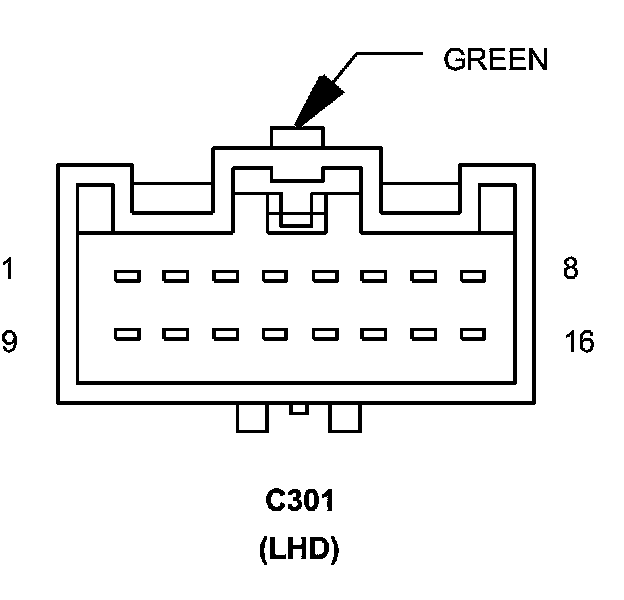

Connector (LHD) - (LEFT FRONT DOOR SIDE) 16 WAY

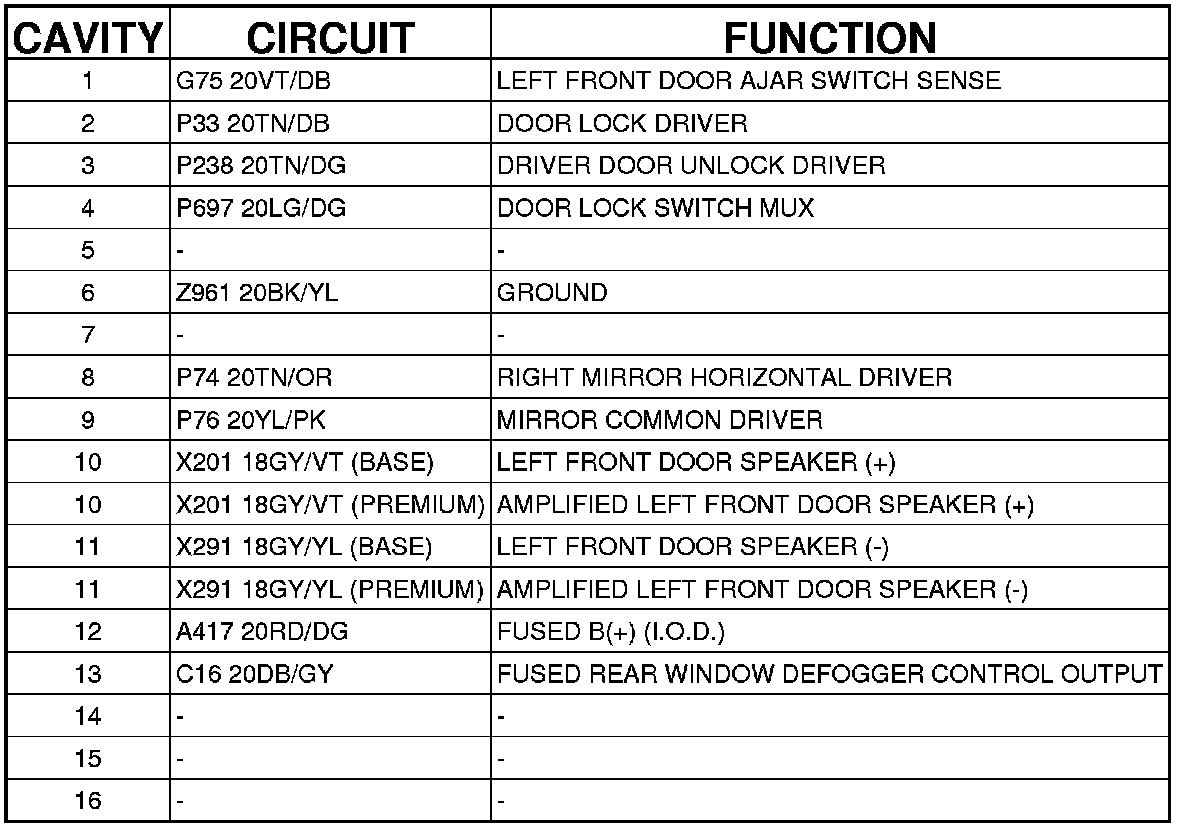

C301 (LHD) - (LEFT FRONT DOOR SIDE) 16 WAY
