C204 (Instrument Panel Side) 10 Way

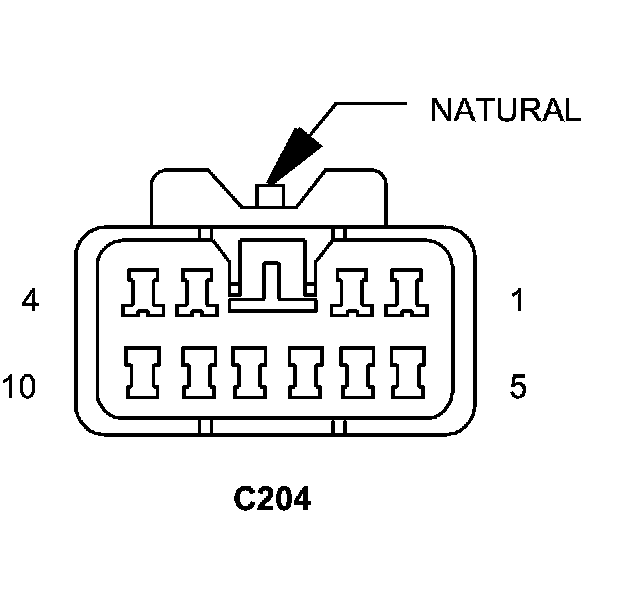

Connector - (INSTRUMENT PANEL SIDE) 10 WAY

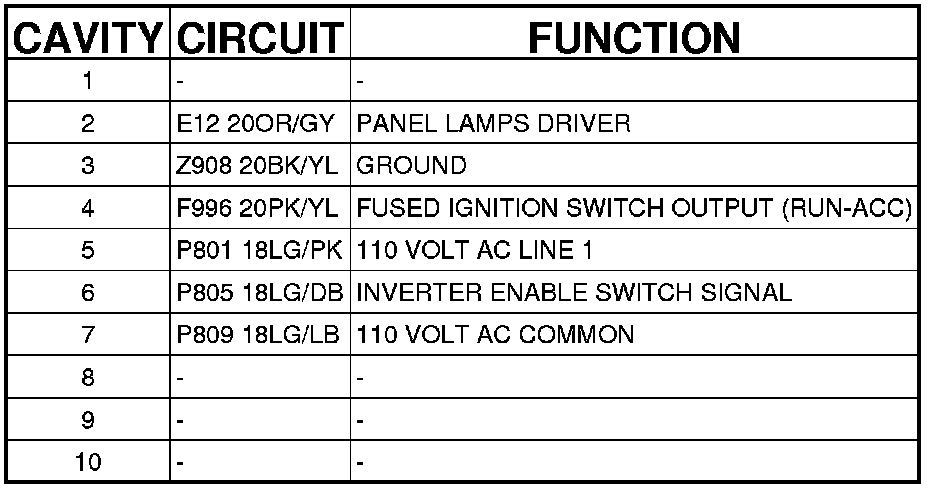

C204 - (INSTRUMENT PANEL SIDE) 10 WAY
