C203 (Instrument Panel Side) 12 Way

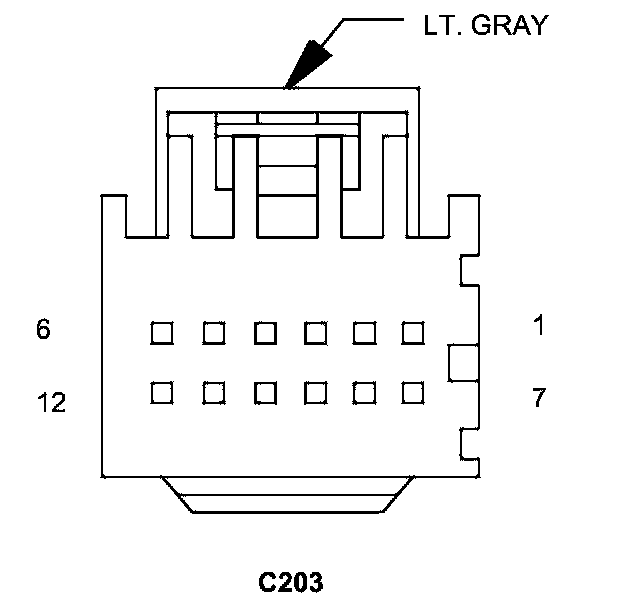

Connector - (INSTRUMENT PANEL SIDE) 12 WAY

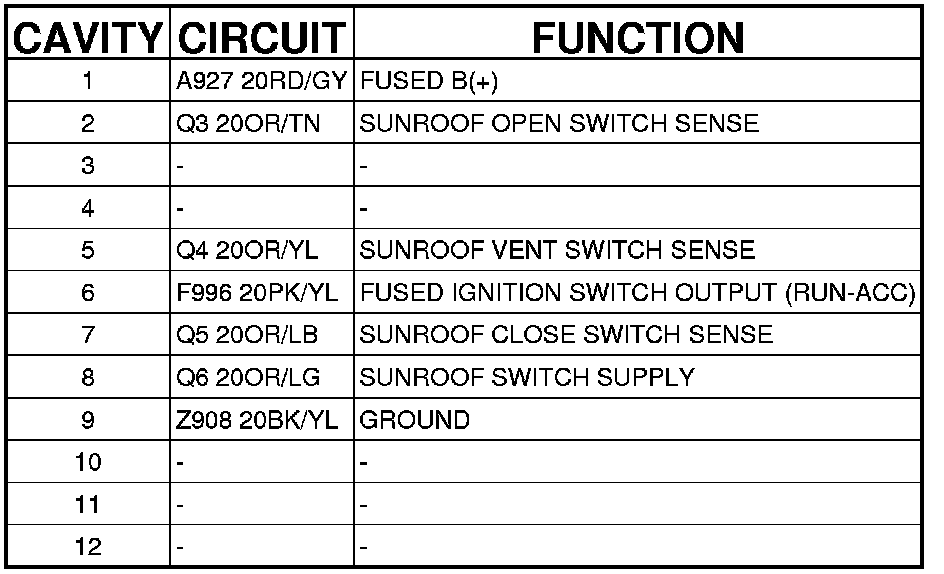

C203 - (INSTRUMENT PANEL SIDE) 12 WAY
