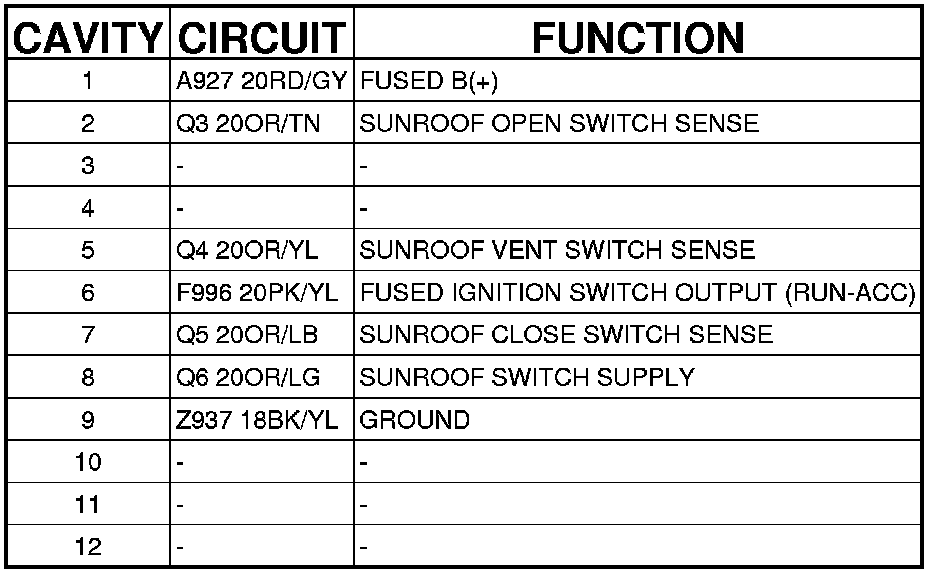

C203 (A-Pillar Jumper Side) 12 Way
C203 (A-Pillar Jumper Side) 12 Way
Connector - (A-PILLAR JUMPER SIDE) 12 WAY
C203 - (A-PILLAR JUMPER SIDE) 12 WAY
