C106 (CVT) (Transmission Side) 6 Way

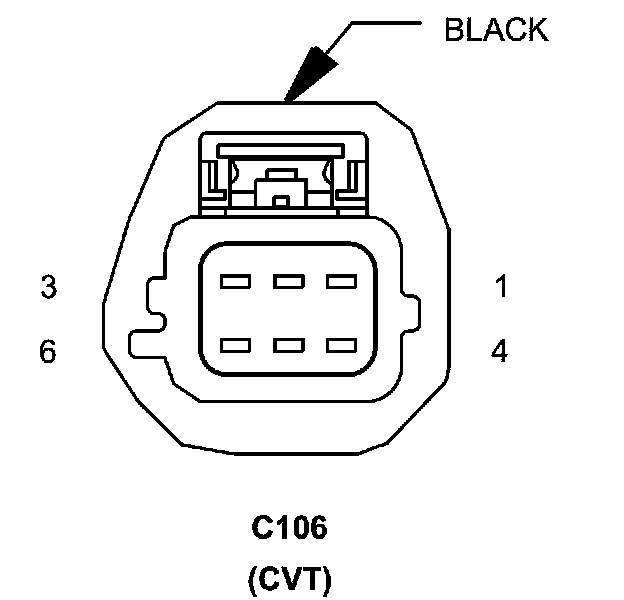

Connector (CVT) - (TRANSMISSION SIDE) 6 WAY

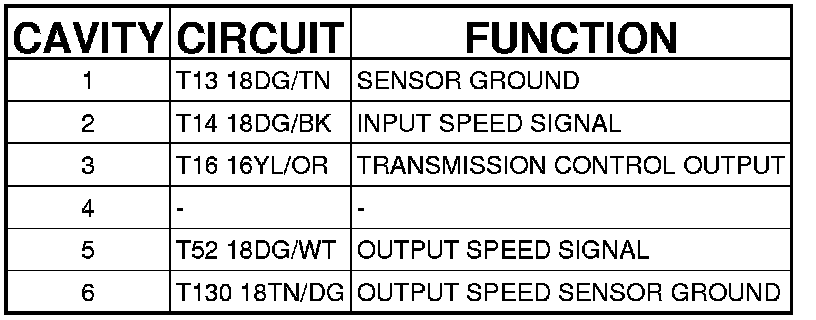

C106 (CVT) - (TRANSMISSION SIDE) 6 WAY
