C101 (Engine-Compartment) 16 Way
C101 (Engine-Compartment) 16 Way

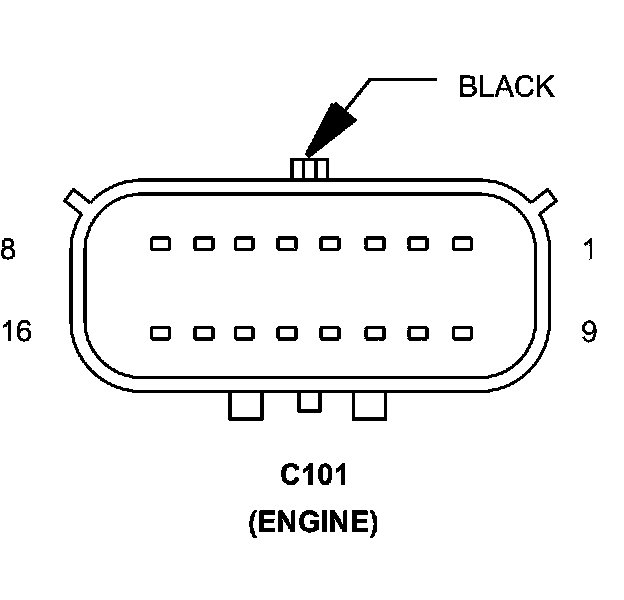

Connector - (ENGINE-COMPARTMENT) 16 WAY

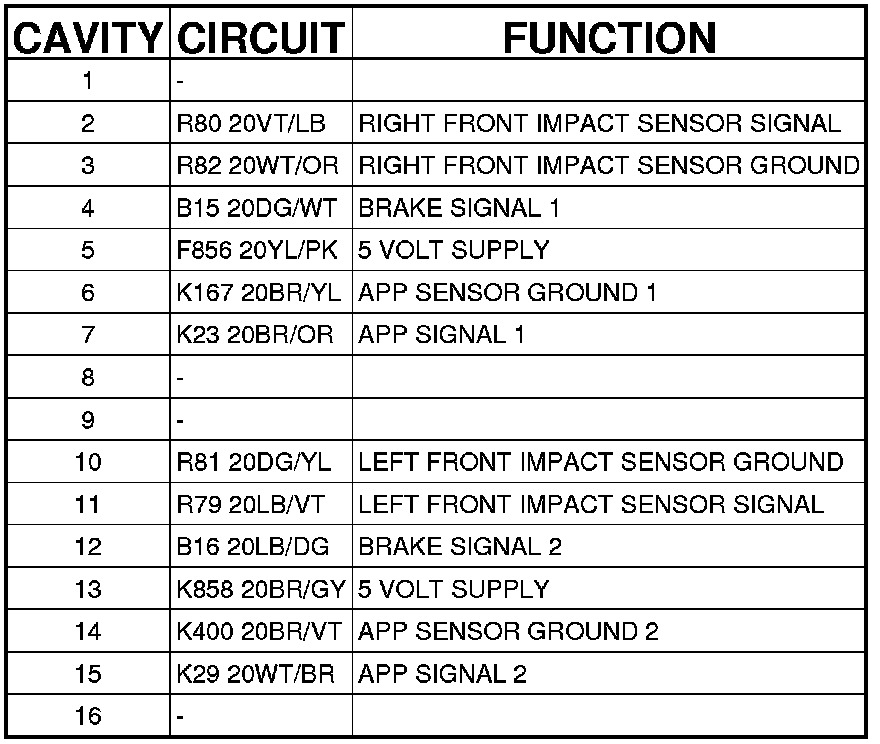

C101 - (ENGINE-COMPARTMENT) 16 WAY
