Home >> Dodge >> 2009 >> Caliber L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blower Motor Resistor

Blower Motor Resistor

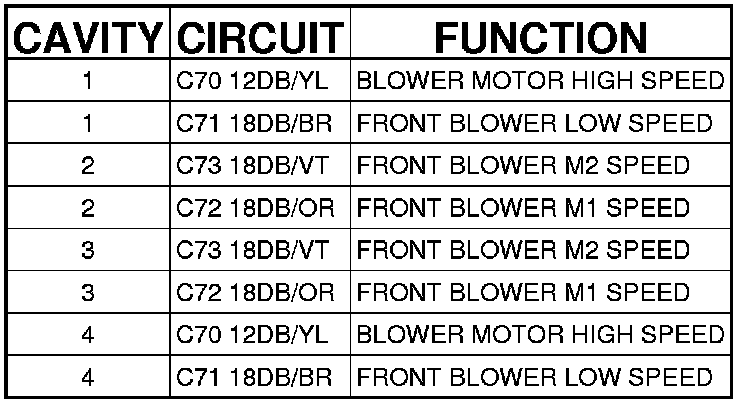

Connector - (INSTRUMENT PANEL) 4 WAY

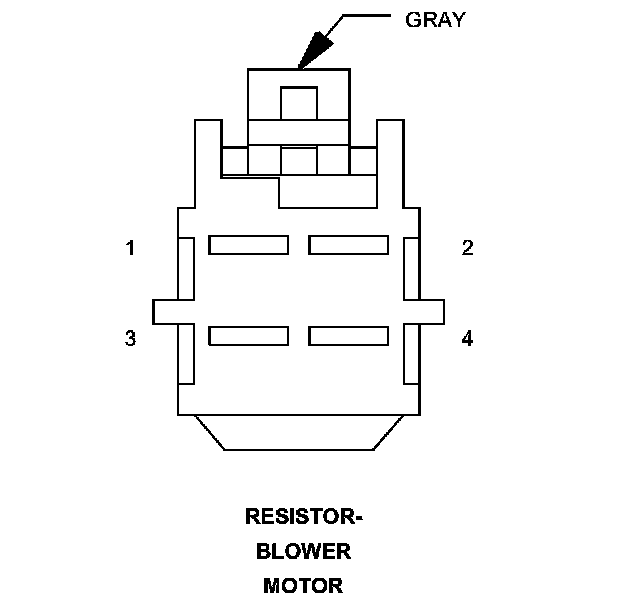

RESISTOR-BLOWER MOTOR - (INSTRUMENT PANEL) 4 WAY
