Lateral Accelerometer: Diagrams






Connector (ESP) - (BODY) 6 WAY

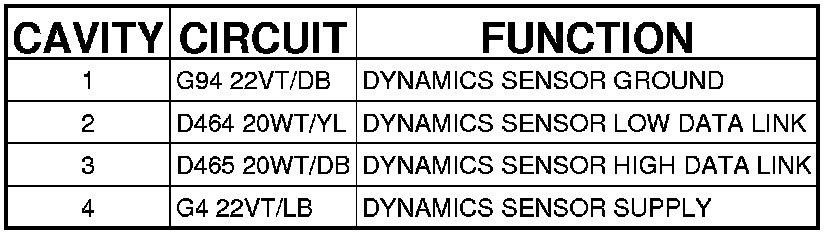

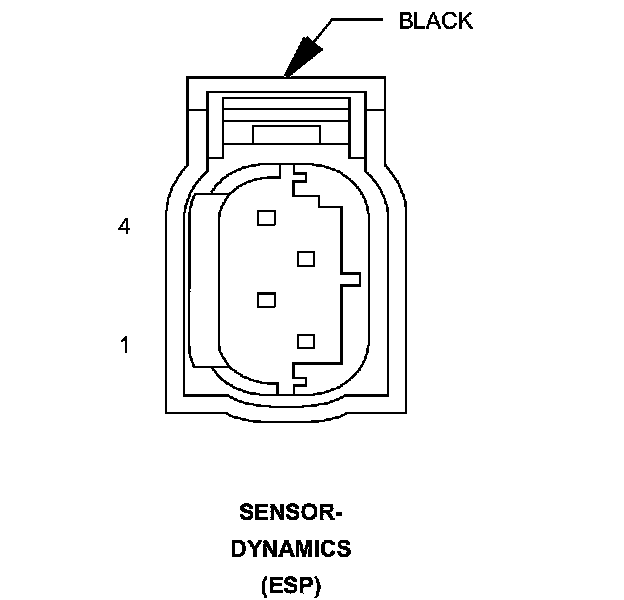

SENSOR-DYNAMICS (ESP) - (BODY) 6 WAY
